| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,636 pcs
|
1636 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
161 pcs
|
161 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
158 pcs
|
158 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Forward Voltage (Typical @ Red) | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Luminous Intensity (Typical @ Red) | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Test Current (Typical @ Red) | |
| Viewing Angle | |
| Voltage | |
| Wavelength | |
| Wavelength Dominant (Typical @ Red) | |
| Wavelength Peak (Typical @ Green) | |
| Wavelength Peak (Typical @ Red) |

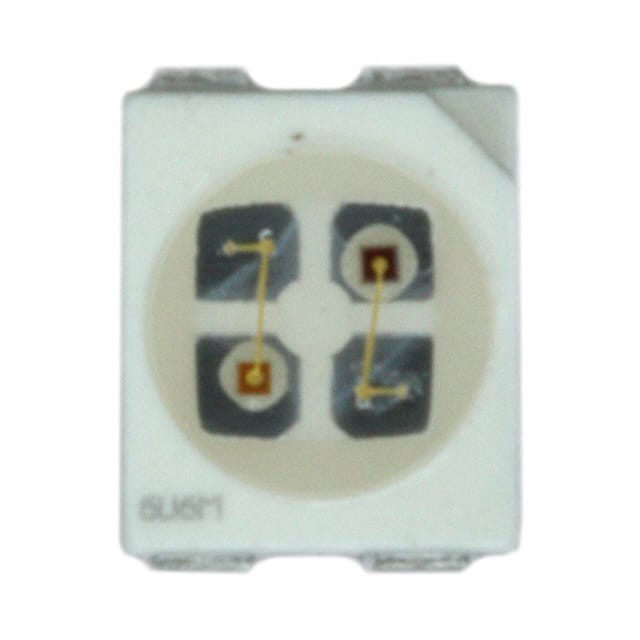

The Dialight 5977701207F is a discrete LED component designed for indication purposes. It offers dual color capability, emitting both Green and Red light.
Key electrical specifications include a typical forward voltage of 2.1V for Green and 2V for Red, with a test current of 20mA for both colors. The luminous intensity is rated at 16mcd for each color. The dominant wavelengths are 570nm for Green and 628nm for Red, with peak wavelengths at 565nm and 630nm respectively. The viewing angle is 120 degrees.
This component comes in a 4-PLCC package and is designed for surface mounting. The lens is colorless and clear, with a round, flat-top style and a diameter of 2.39mm. The dimensions of the package are 3.20mm in length and 2.70mm in width, with a maximum height of 1.90mm. The configuration is independent, allowing for separate control of the Green and Red LEDs.
Environmental compliance includes RoHS3 status. The component is supplied in Tape & Reel or Cut Tape packaging options.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2.1V for Green and 2V for Red.
The luminous intensity is 16mcd for both Green and Red colors.
The viewing angle is 120 degrees.
It is supplied in a 4-PLCC package.
This component is designed for surface mounting.
