| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,300 pcs
|
10300 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
193 pcs
|
193 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Tape & Reel (TR) | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

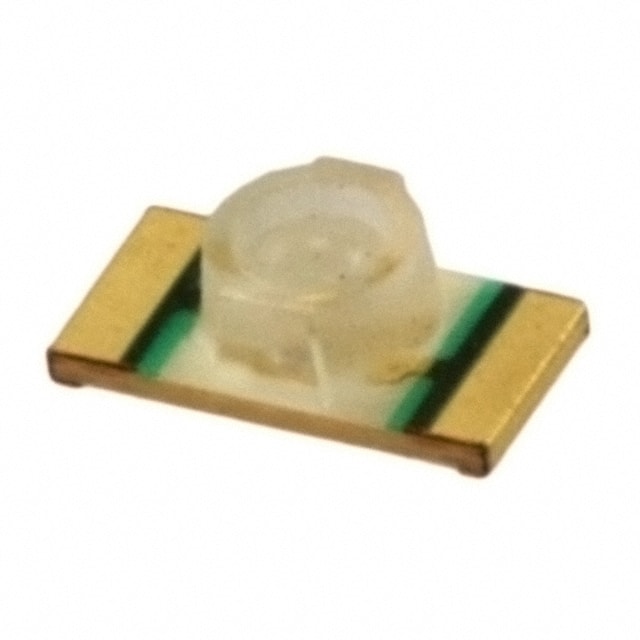

This Dialight 5976301607F is a green LED designed for discrete indication applications. It comes in a compact 1206 (3216 Metric) SMD package, suitable for surface mount assembly.
The LED operates at a typical forward voltage of 3.3V and draws a test current of 20mA. It emits a bright green light with a dominant wavelength of 525nm and a peak wavelength of 530nm. The luminous intensity is rated at 411mcd.
With a viewing angle of 70 degrees, this LED provides clear visibility. Its dimensions are 3.20mm in length and 1.60mm in width, with a maximum height of 1.10mm. The lens is clear and colorless, with a round, flat-top style.
This component is suitable for various electronic designs requiring reliable green LED indicators. Its surface mount capability and standard package size facilitate integration into automated manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 3.3V.
The dominant wavelength is 525nm.
It is a 1206 (3216 Metric) SMD package.
The viewing angle is 70 degrees.
The dimensions are 3.20mm L x 1.60mm W.
