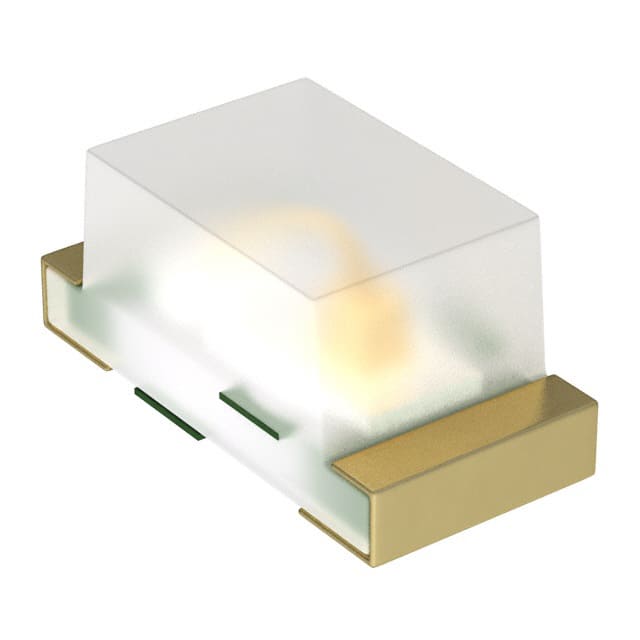

5975312407NF The Dialight 5975312407NF is a green LED indication component. It features a diffused lens and surface mount package.
Mfr Part #:

5975312407NF

Available from 2 distributors
Mfr Name: Dialight
Dialight
The Dialight 5975312407NF is a green LED indication component. It features a diffused lens and surface mount package.
✓ Total Stock: 4,020 pcs
$ Price Range: $0.99

5975312407NF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
3,979 pcs
On Request
3979 pcs On Request 1 On Request On Request On Request On Request On Request
Innova Technologies ✓
Non-Authorised Inventory information
41 pcs
On Request
41 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5975312407NF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Forward Voltage
Height
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

5975312407NF Description

Short technical summary and product information.

This Dialight 5975312407NF is a discrete LED designed for indication purposes. It emits green light with a dominant wavelength of 567nm and a typical luminous intensity of 9.8mcd at 20mA.



The LED operates at a typical forward voltage of 2.1V and has a wide viewing angle of 152°. It is housed in a compact 0603 (1608 Metric) surface mount package, measuring 1.60mm in length and 0.80mm in width, with a maximum height of 0.70mm.



Key electrical characteristics include a test current of 20mA and a dominant wavelength of 567nm. The lens is white, diffused, and rectangular with a flat top. This component is suitable for various electronic assemblies requiring visual indication.



Environmental compliance includes RoHS3 compliance, REACH unaffected status, and an MSL rating of 1. The component is designed for surface mounting, making it compatible with automated assembly processes.

5975312407NF Quick Information

Product Type: LED Indication - Discrete
Series: 597
Canonical Name: Dialight 5975312407NF Green LED
Subcategory: Discrete

5975312407NF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5975312407NF Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

5975312407NF Features

  • Green diffused LED indication component.
  • Surface mount 0603 package.
  • 2.1V typical forward voltage.
  • 9.8mcd typical luminous intensity.
  • 567nm dominant wavelength.

5975312407NF Applications

  • Ideal for status indication.
  • Suitable for compact PCB designs.
  • Used in electronic assemblies.
  • Visual feedback applications.

5975312407NF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the 5975312407NF LED?

The typical forward voltage is 2.1V.

What is the luminous intensity of the 5975312407NF LED?

The typical luminous intensity is 9.8mcd at 20mA.

What is the dominant wavelength of the 5975312407NF LED?

The dominant wavelength is 567nm.

What is the viewing angle of the 5975312407NF LED?

The viewing angle is 152°.

What are the dimensions of the 5975312407NF LED?

The dimensions are 1.60mm L x 0.80mm W.

What package type is the 5975312407NF LED supplied in?

It is supplied in a 0603 (1608 Metric) package.

How is the 5975312407NF LED mounted?

It is a surface mount component.
