| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,450 pcs
|
1450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Forward Current | |
| Forward Voltage (Typical/Maximum @ IF=20 mA) | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

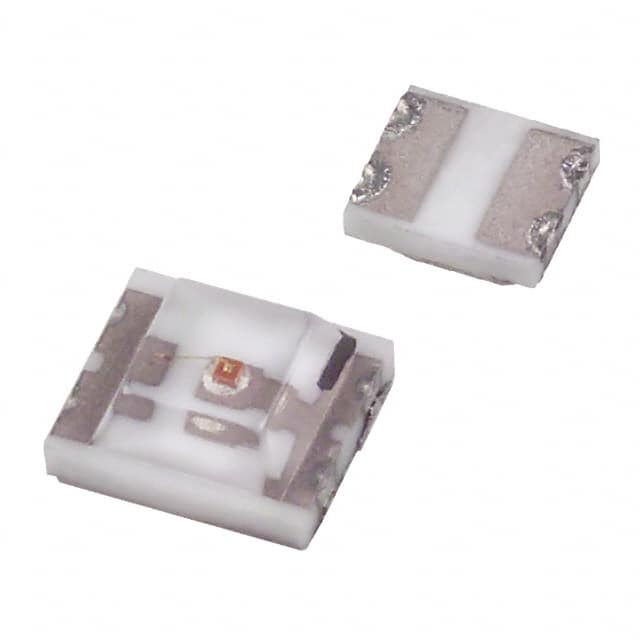

This Dialight 5973301107 is a green, clear lens LED suitable for discrete indication applications. It features a standard configuration and is designed for surface mount technology, with a package size of 1210.
The LED operates with a typical forward voltage of 2V and a forward current of 20mA, providing a typical luminous intensity of 12mcd. The peak wavelength is 565nm, and it offers a wide viewing angle of 170°.
With a maximum power dissipation of 65mW, the operating temperature range is -30°C to +75°C, and storage temperature is -30°C to +85°C. The dimensions of the LED are 2.54mm in length and 3.00mm in width, with a maximum height of 1.21mm. The lens style is a rectangle with a flat top, and the lens size is 1.70mm.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status. This component is compatible with automatic placement equipment and infrared reflow processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the Dialight 5973301107 LED is 2V at 20mA.
The typical luminous intensity of the Dialight 5973301107 LED is 12mcd at 20mA.
The typical viewing angle for the Dialight 5973301107 LED is 170 degrees.
The operating temperature range for the Dialight 5973301107 LED is -30°C to +75°C.
The RoHS status for the Dialight 5973301107 LED is RoHS3 Compliant.
