| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,160 pcs
|
2160 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
570 pcs
|
570 pcs | On Request | 1 | On Request | On Request | 08+ | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

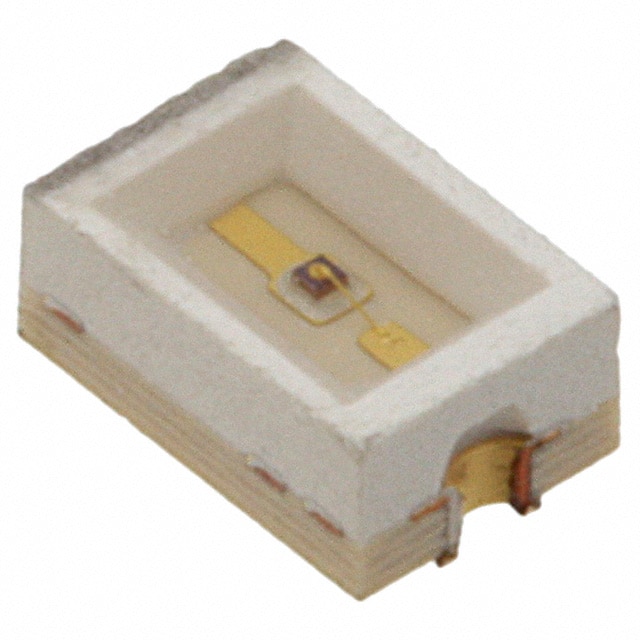

This red LED from Dialight, part number 5973021507F, is designed for discrete indication applications. It operates at a typical forward voltage of 2V and a test current of 20mA, emitting light at a dominant wavelength of 650nm.
The LED has a luminous intensity rating of 6.3mcd and a wide viewing angle of 110°. The lens is clear and colorless, with a rectangular shape and flat top, measuring 2.30mm x 1.60mm. The overall component dimensions are 3.00mm in length and 2.00mm in width, with a maximum height of 1.50mm.
Designed for surface mounting, the 5973021507F comes in a 1208 (3020 Metric) package. Its standard configuration and clear lens make it suitable for various general indication purposes where a red light source is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2V.
The dominant wavelength is 650nm.
The viewing angle is 110°.
It is a 1208 (3020 Metric) surface mount package.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
