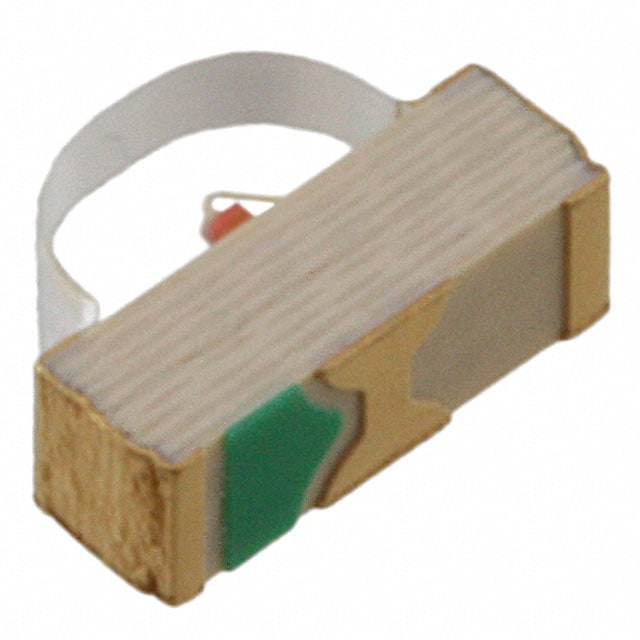

5972401407F The Dialight 5972401407F is a yellow LED designed for SMD mounting with a right-angle orientation. It operates at a typical forward voltage of 2.2V and a forward current of 20mA.
Mfr Part #:

5972401407F

Available from 2 distributors
Mfr Name: Dialight
Dialight
The Dialight 5972401407F is a yellow LED designed for SMD mounting with a right-angle orientation. It operates at a typical forward voltage of 2.2V and a forward current of 20mA.
✓ Total Stock: 5,089 pcs
$ Price Range: $0.99

5972401407F Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
2,812 pcs
On Request
2812 pcs On Request 1 On Request On Request 7 On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
2,277 pcs
On Request
2277 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5972401407F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Dimensions
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Operating Temperature
Reverse Current
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

5972401407F Description

Short technical summary and product information.

This Dialight 5972401407F is a yellow LED suitable for surface-mount applications, featuring a right-angle configuration. It is housed in a 1208 package and offers a clear, colorless lens with a rectangular shape and a domed top.



The LED emits yellow light with a dominant wavelength of 580nm. Key electrical characteristics include a typical forward voltage of 2.2V at a forward current of 20mA, and a luminous intensity of 3mcd. The viewing angle is broad at 130 degrees. The maximum power dissipation is rated at 70mW, and it operates within a temperature range of -30°C to +85°C.



Mechanical specifications include dimensions of 3.00mm in length and 2.00mm in width, with a maximum height of 1.00mm. The lens dimensions are 2.00mm x 1.00mm. This component is classified as a standard LED and is supplied in tape and reel packaging.

5972401407F Quick Information

Product Type: LED
Canonical Name: Dialight 5972401407F Yellow SMD Right Angle LED
Subcategory: Standard LEDs - SMD

5972401407F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5972401407F Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

5972401407F Features

  • Yellow SMD right-angle LED.
  • Typical forward voltage of 2.2V.
  • 20mA forward current rating.
  • 130-degree wide viewing angle.
  • 580nm dominant wavelength.

5972401407F Applications

  • Indicator status lighting.
  • Panel mount indicators.
  • Consumer electronics.
  • Industrial control panels.

5972401407F FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the Dialight 5972401407F LED?

The typical forward voltage for the 5972401407F LED is 2.2V at 20mA.

What is the color and wavelength of the Dialight 5972401407F LED?

The Dialight 5972401407F LED is yellow with a dominant wavelength of 580nm.

What is the viewing angle of the Dialight 5972401407F LED?

The viewing angle of the Dialight 5972401407F LED is 130 degrees.

What is the operating temperature range for this LED?

The operating temperature range for the Dialight 5972401407F LED is -30°C to +85°C.

What package type is the Dialight 5972401407F LED supplied in?

The Dialight 5972401407F LED is supplied in the 1208 package type and is available in tape and reel packaging.
