| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Absolute Maximum Ratings (Maximum @ 25 C Ambient) | |
| Color | |
| Configuration | |
| Current | |
| Dominant Wavelength | |
| Forward Voltage (Minimum/Typical/Maximum @ IF=10 mA) | |
| Height (Max) | |
| LED Chip Material | |
| LED Lead Finish | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Luminous Intensity (Typical/Maximum @ IF = 10 mA) | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Wavelength (Typical @ IF=10 mA) | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle | |
| Viewing Angle (Typical @ 2 q 1/2) | |
| Voltage | |
| Wavelength |

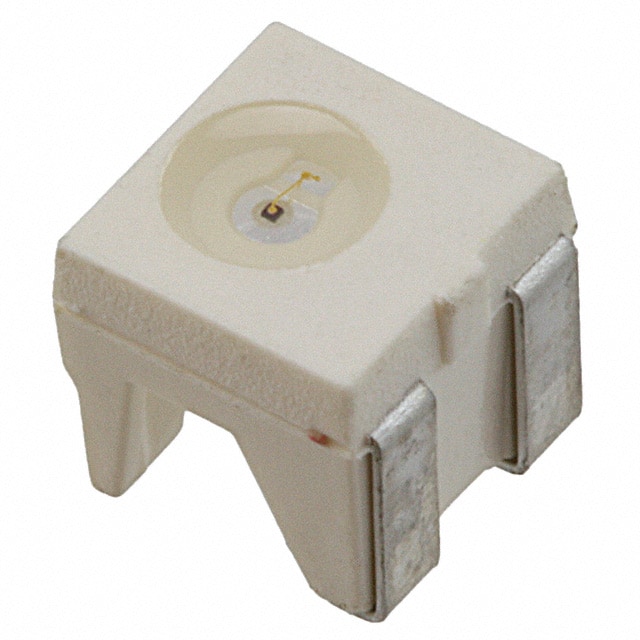

This Dialight 5972401202F is a yellow surface-mount (SMD) LED designed for discrete indication applications. It features a clear, round lens with a flat top and a 2.40mm diameter.
The LED operates with a typical forward voltage of 1.8V at 10mA, providing a luminous intensity of 70mcd under the same conditions. Its peak wavelength is 591nm, with a dominant wavelength of 580nm. The viewing angle is a wide 120°.
Mechanically, the component has a size of 3.60mm L x 4.00mm W and a maximum height of 4.20mm. It is packaged in a 2-SMD, Boomerang case and is suitable for right-angle surface mounting.
Absolute maximum ratings include a power dissipation of 45mW, a continuous forward current of 20mA, and a peak forward current of 100mA. The operating temperature range is -40°C to +100°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the Dialight 5972401202F LED is 1.8V at 10mA.
The luminous intensity of the 5972401202F yellow LED is typically 70mcd at 10mA.
The Dialight 5972401202F LED has a viewing angle of 120°.
The operating and storage temperature range for this LED is -40°C to +100°C.
This LED is packaged in a 2-SMD, Boomerang case and is supplied on tape and reel with a standard package quantity of 2000 units.
