| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,858 pcs
|
2858 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,778 pcs
|
2778 pcs | On Request | 1 | On Request | On Request | 708 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Continuous Forward Current | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

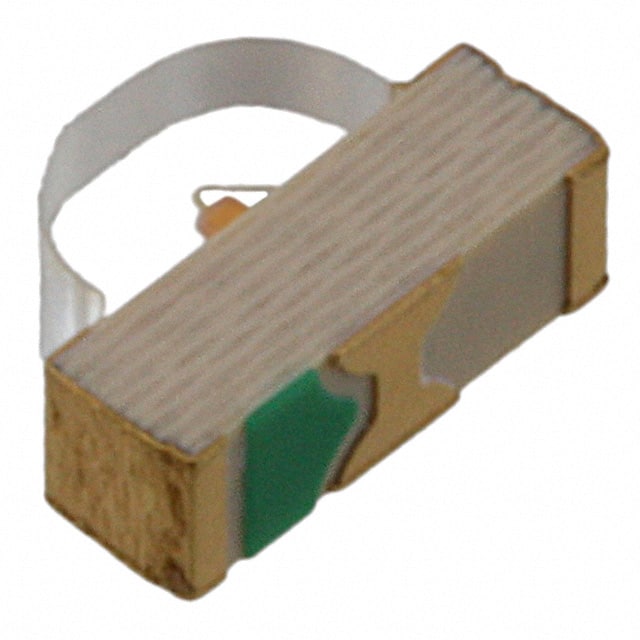

This Dialight 5972311407F is a green LED from the 597 series, featuring a clear, colorless lens and a rectangle with a domed top style. It is designed for surface mount applications with a right-angle configuration, housed in a 1208 package.
The LED exhibits a luminous intensity of 5.2mcd at a forward current of 20mA, with a typical forward voltage of 2.1V and a maximum of 2.8V. The dominant wavelength is 560nm, and it provides a wide viewing angle of 130°.
Key electrical characteristics include a maximum power dissipation of 70mW at 25°C and a maximum continuous forward current of 25mA. The operating temperature range is -40°C to +85°C, with a storage temperature range of -40°C to +100°C. The component is rated for Moisture Sensitivity Level 1 (Unlimited).
Its dimensions are 3.00mm in length and 2.00mm in width, with a maximum height of 1.00mm. The lens measures 2.00mm x 1.00mm. This LED is suitable for various electronic indication applications requiring a green light output in a compact SMD package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the Dialight 5972311407F LED is 2.1V at 20mA.
The Dialight 5972311407F green LED has a typical luminous intensity of 5.2mcd at 20mA.
The dominant wavelength of the Dialight 5972311407F LED is 560nm.
The Dialight 5972311407F LED has a viewing angle of 130°.
The Dialight 5972311407F LED operates between -40°C and +85°C.
The Dialight 5972311407F LED is supplied in a 1208 SMD, right-angle package.
