| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,536 pcs
|
2536 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Dimensions | |
| Forward Voltage | |
| Height | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle |

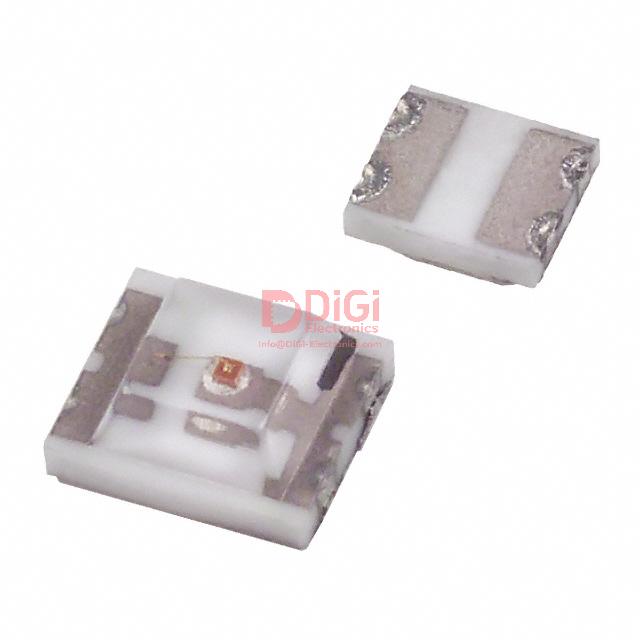

The Dialight 597-3001-107 is a Red Clear 1210 SMD LED designed for discrete indication applications. It operates with a typical forward voltage of 2V at 10mA and offers a luminous intensity of 4mcd.
This LED has a wide viewing angle of 170 degrees and a peak wavelength of 630nm. The lens is clear and colorless, with a rectangular flat top style. The component is housed in a 4-SMD, No Lead package, also known as 1210, suitable for surface mounting.
With dimensions of 2.54mm L x 3.00mm W and a maximum height of 1.21mm, this LED is designed for compact electronic assemblies. The product status is listed as Obsolete.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.12 | $8.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the Dialight 597-3001-107 LED is 2V at 10mA.
The peak wavelength of the Dialight 597-3001-107 LED is 630nm.
The luminous intensity rating for this LED is 4mcd.
The viewing angle for this LED is 170 degrees.
The Dialight 597-3001-107 uses a 4-SMD, No Lead package, also referred to as 1210.
The RoHS status is listed as RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
