Mfr Part #:

5962R1320202VXC

The Texas Instruments 5962R1320202VXC is a radiation-hardened, QML-V certified LDO linear regulator. It features an ultra-low dropout voltage and a wide input voltage range.

✓ Total Stock: 11,106 pcs

$ Price Range: $1,926.52

5962R1320202VXC Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Unit Electronics Co.,Limited ✓ Non-Authorised Inventory information	11,099 pcs On Request	11099 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	7 pcs On Request	7 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5962R1320202VXC Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Unclassified
Manufacturer Name	Texas Instruments

View Similar Products (0)

5962R1320202VXC Description

Short technical summary and product information.

The Texas Instruments 5962R1320202VXC is a radiation-hardened LDO linear regulator designed for demanding applications. It operates with an input voltage range of 1.5 V to 7 V and can deliver up to 3 A of output current, with parallel operation supporting up to 6 A.

Key electrical characteristics include an ultra-low dropout voltage of 62 mV at 1 A and low noise performance of 20.33 µVRMS. The regulator offers ±2% accuracy over line, load, and temperature variations, and features a PSRR of over 45 dB at 1 kHz. It is stable with ceramic output capacitors and includes features like programmable soft-start, input enable, and a power-good output for power sequencing.

This device is qualified to QML-V standards and offers robust radiation hardness assurance, including immunity to Single Event Latchup (SEL) and Single Event Burnout/Gate Rupture (SEB/SEGR) up to LET = 85 MeV-cm²/mg. It also has an SET/SEFI onset threshold greater than 40 MeV-cm²/mg.

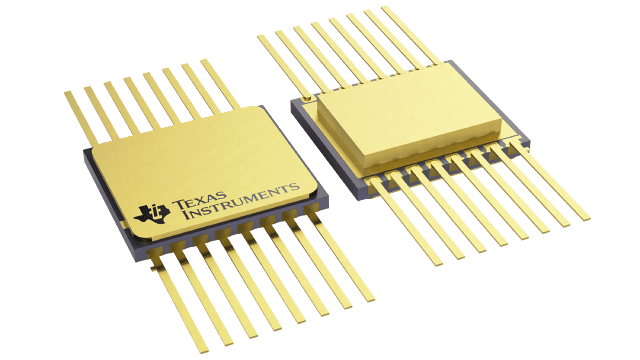

The TPS7H1101-SP is housed in a thermally-enhanced CFP package with 16 pins. It operates across a wide temperature range of -55°C to 125°C. This part is not recommended for new designs.

5962R1320202VXC Quick Information

Product Type: LDO Regulator

Canonical Name: Texas Instruments 5962R1320202VXC Radiation-Hardened Ultra-Low Dropout Regulator

Subcategory: Ultra Low Dropout Regulator

5962R1320202VXC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5962R1320202VXC Estimated Pricing

Qty	Low	High
1+	$1,926.52	$1,926.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

5962R1320202VXC Features

Radiation-hardened, QML-V regulator.
1.5V to 7V input voltage range.
3A maximum output current.
Ultra-low dropout voltage.
Wide operating temperature range.

5962R1320202VXC Applications

Ideal for space applications.
High-reliability power systems.
Radiation-intensive environments.
Critical downstream component protection.

5962R1320202VXC FAQs

6 frequently asked questions generated from this part’s specifications.

What is the input voltage range for the TPS7H1101-SP?

The input voltage range is 1.5 V to 7 V.

What is the maximum output current of the TPS7H1101-SP?

The maximum output current is 3 A, and up to 6 A with current share/parallel operation.

What is the dropout voltage of the TPS7H1101-SP?

The dropout voltage is typically 62 mV at 1 A when the output voltage is 1.8 V and the temperature is 25°C.

What is the operating temperature range for this LDO regulator?

The operating temperature range is -55°C to 125°C.

What are the radiation hardness features of the TPS7H1101-SP?

It offers RHA up to 100 krad (Si) Total Ionizing Dose, is ELDRS-Free, and immune to SEL, SEB, and SEGR up to LET = 85 MeV-cm²/mg.

What package type is the TPS7H1101-SP available in?

The TPS7H1101-SP is available in a 16-pin CFP (HKR) package.
