The 5962-9078501MLA is a 12-bit dual digital-to-analog converter (DAC) manufactured by Analog Devices / Maxim Integrated. It features two independent DACs with voltage-buffered outputs, a parallel data interface, and an R-2R architecture. The device operates from dual supplies of ±11.4V to ±15.75V and offers a settling time of 10 µs.
This DAC supports both external and internal voltage references, providing flexibility in system design. The integral non-linearity (INL) is specified at ±0.5 LSB (max) and ±0.9 LSB (max), ensuring accurate analog output. The operating temperature range spans -55°C to 125°C, making it suitable for harsh environments.

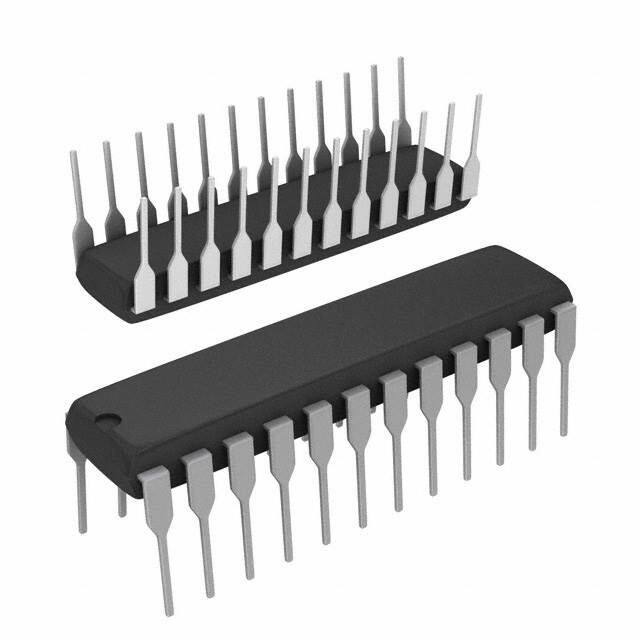

The part is housed in a 24-lead ceramic dual-in-line package (CDIP) with 0.300-inch body width and 7.62mm lead spacing, designed for through-hole mounting. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).
The 5962-9078501MLA has a resolution of 12 bits.
It has two D/A converters (dual channel).
The output type is voltage-buffered.
The supply voltage range is ±11.4V to ±15.75V (dual supply).
The settling time is 10 µs.
The operating temperature range is -55°C to 125°C.
It comes in a 24-lead CDIP (0.300", 7.62mm) through-hole package.
