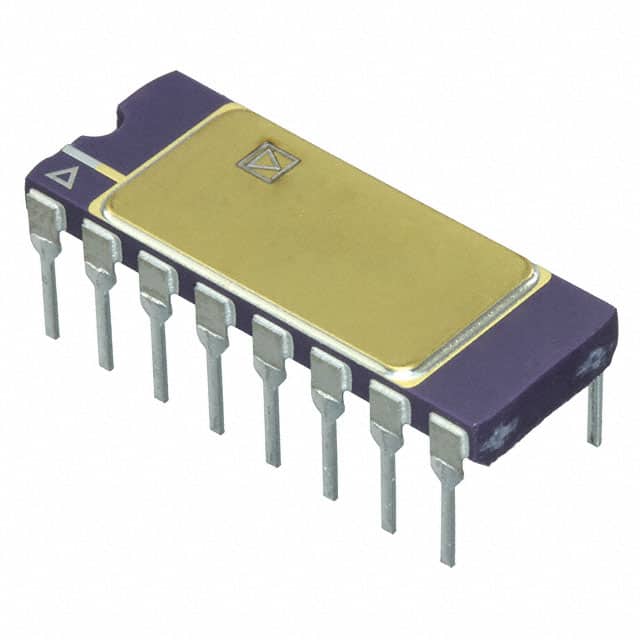

5962-8778902EA 8-bit, 1-channel voltage output digital-to-analog converter with parallel interface. Operates from -55°C to 125°C in a 16-CDIP package.
Mfr Part #:

5962-8778902EA

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
8-bit, 1-channel voltage output digital-to-analog converter with parallel interface. Operates from -55°C to 125°C in a 16-CDIP package.
✓ Total Stock: 2,036 pcs

5962-8778902EA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,036 pcs
On Request
2036 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5962-8778902EA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Number of Channels
Output Type
Resolution
Tape & Reel
View Similar Products (0)

5962-8778902EA Description

Short technical summary and product information.

The 5962-8778902EA is an 8-bit, single-channel voltage output digital-to-analog converter (DAC) from the AD558 series, manufactured by Analog Devices / Maxim Integrated. It features a parallel interface for easy connection to microcontrollers and digital systems, and delivers unbuffered voltage output suitable for moderate-speed precision applications.



Key specifications include 8-bit resolution, 1 channel, parallel interface type, and a wide operating temperature range from -55°C to 125°C, making it suitable for harsh environment designs. The device is offered in a 16-CDIP (ceramic dual in-line package) and is supplied in tube packaging.



While no datasheet is currently linked, the available specifications confirm its role as a basic voltage-output DAC. Designers should verify dynamic parameters such as settling time and linearity from the official datasheet for detailed timing and accuracy requirements.

5962-8778902EA Quick Information

Product Type: Digital to Analog Converter (DAC)
Series: AD558
Canonical Name: Analog Devices 5962-8778902EA (AD558) 8-Bit, 1-Channel, Voltage Output DAC
Subcategory: Digital to Analog Converters (DAC)

5962-8778902EA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5962-8778902EA Features

  • 8-bit resolution for moderate precision applications.
  • Single-channel voltage output with parallel interface.
  • Wide operating temperature range: -55°C to 125°C.
  • Available in 16-CDIP ceramic package.
  • Part of the AD558 series from Analog Devices.

5962-8778902EA Applications

  • Military and aerospace analog signal generation.
  • Industrial process control and automation systems.
  • Test and measurement equipment calibration.
  • Wide-temperature data acquisition modules.

5962-8778902EA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the 5962-8778902EA?

8 bits.

How many channels does the 5962-8778902EA have?

1 channel.

What interface type does the 5962-8778902EA use?

Parallel interface.

What is the output type of the 5962-8778902EA?

Voltage output (unbuffered).

What is the package type for the 5962-8778902EA?

16-CDIP (Ceramic Dual In-line Package).

What is the operating temperature range of the 5962-8778902EA?

-55°C to 125°C.

Is the 5962-8778902EA RoHS compliant?

Reported as RoHS3 compliant, but this status is unverified.
