| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Supply Current | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage Reference |
The Analog Devices Inc. 5962-8688203XA is an integrated circuit functioning as a voltage reference. It provides a fixed output voltage of 10V with a tight tolerance of ±0.3%. The device is designed to operate with an input voltage of 13V and can supply a current output of up to 10mA.
Key electrical characteristics include a low supply current of 1mA and a temperature coefficient of 10ppm/°C, ensuring stable performance across varying temperatures. The operating temperature range for this component is -55°C to 125°C (TA).

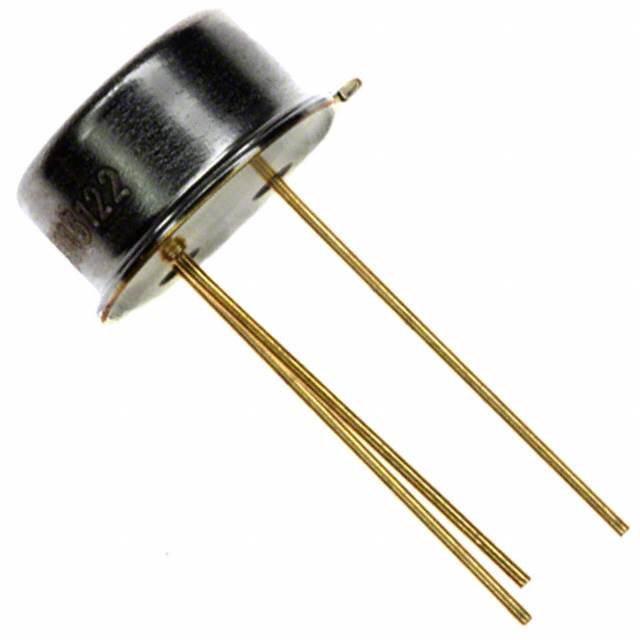

This voltage reference is housed in a TO-205AA, TO-5-3 Metal Can package and features a through-hole mounting type. Its description is IC VREF SERIES 0.3% TO5.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5962-8688203XA has a fixed output voltage of 10V.
The tolerance for the 5962-8688203XA is ±0.3%.
The temperature coefficient of the 5962-8688203XA is 10ppm/°C.
The operating temperature range is -55°C to 125°C (TA).
The 5962-8688203XA is available in a TO-205AA, TO-5-3 Metal Can package.
