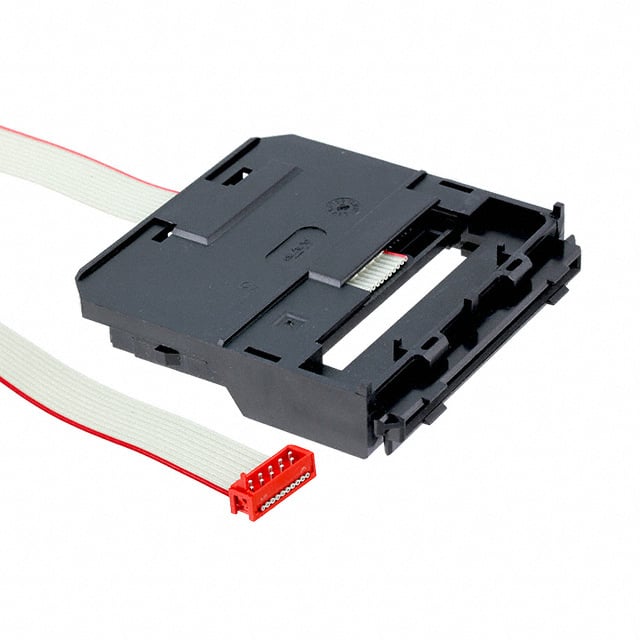

5953497-5 TE Connectivity 5953497-5 Smart Card Connector with 10 (8+2) positions, panel mount, gold contact finish, and push-in/pull-out insertion.
Mfr Part #:

5953497-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5953497-5 Smart Card Connector with 10 (8+2) positions, panel mount, gold contact finish, and push-in/pull-out insertion.
✓ Total Stock: 300 pcs

5953497-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5953497-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Insertion, Removal Method
Mounting Feature
Mounting Type
Number of Positions
View Similar Products (0)

5953497-5 Description

Short technical summary and product information.

The TE Connectivity 5953497-5 is a Smart Card connector designed for reliable card interfacing in memory and identification applications. It features 10 (8+2) positions for signal and power connections, with gold-plated contacts ensuring low resistance and corrosion resistance. The connector is panel mounted with a standard top mounting feature, making it suitable for fixed installations. The push-in, pull-out insertion and removal method provides secure card retention and easy operation. An integrated cable assembly and switch simplify wiring and detection. The contact finish thickness is 30.0µin (0.76µm), and the height above board is 0.061 inches (1.55mm). This connector is ideal for use in smart card readers, point-of-sale terminals, and access control systems where reliable card connectivity is required.

5953497-5 Quick Information

Product Type: Smart Card Connector
Canonical Name: Smart Card Connector, 10 (8+2) Positions, Panel Mount
Subcategory: PC Card Socket

5953497-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5953497-5 Features

  • 10 (8+2) positions for smart card.
  • Gold contact finish ensures durability.
  • Panel mount with standard top mounting.
  • Push-in, pull-out card insertion.
  • Includes cable assembly and switch.

5953497-5 Applications

  • Used in smart card reader terminals.
  • Ideal for point-of-sale devices.
  • Suitable for access control systems.
  • Common in identification card interfaces.

5953497-5 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the connector have?

10 (8+2) positions.

What is the mounting type?

Panel mount.

What is the contact finish?

Gold with 30.0µin (0.76µm) thickness.

How is the card inserted and removed?

Push in, pull out.

What features are included?

Assembly with cable and switch.

What is the height above board?

0.061 inches (1.55mm).

What card type does this connector support?

Smart Card.
