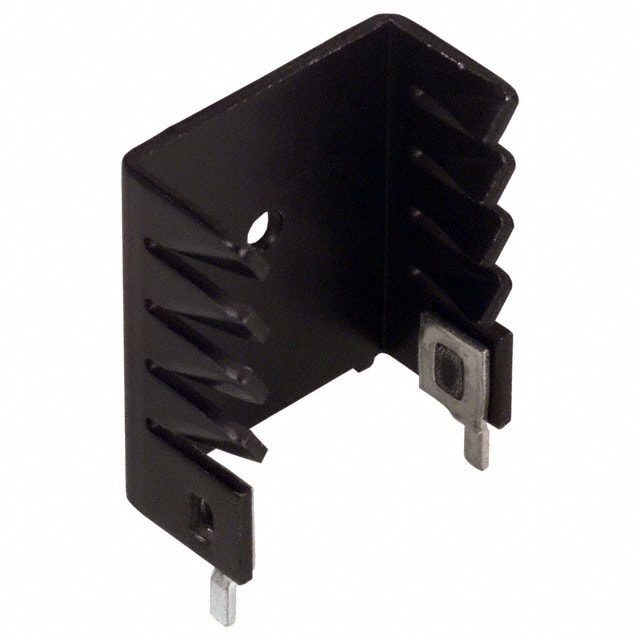

593002B03400G Board level vertical heat sink for TO-220 packages. Features aluminum construction with black anodized finish, 13.40°C/W thermal resistance in natural convection, and 1.0W power dissipation at 20°C temperature rise.
Mfr Part #:

593002B03400G

Available from 4 distributors
Mfr Name: Aavid, Thermal Division of Boyd Corporation
Aavid, Thermal Division of Boyd Corporation
Board level vertical heat sink for TO-220 packages. Features aluminum construction with black anodized finish, 13.40°C/W thermal resistance in natural convection, and 1.0W power dissipation at 20°C temperature rise.
✓ Total Stock: 9,255 pcs
$ Price Range: $0.66 - $0.97

593002B03400G Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

593002B03400G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Attachment Method
Fin Height
Length
Material
Material Finish
Package Cooled
Power Dissipation @ Temperature Rise
Shape
Tape & Reel
Thermal Resistance @ Forced Air Flow
Thermal Resistance @ Natural
Type
Width
View Similar Products (0)

593002B03400G Description

Short technical summary and product information.

The 593002B03400G is a board level vertical heat sink designed for cooling TO-220 semiconductor packages. It features a rectangular fin design made from aluminum with a black anodized finish for improved thermal performance and corrosion resistance.



The heat sink offers a thermal resistance of 13.40°C/W under natural convection and 4.00°C/W at 600 LFM forced air flow. It can dissipate up to 1.0W with a 20°C temperature rise. The attachment method includes both bolt-on and PC pin for secure mounting to the board. Dimensions are 29.97mm length, 23.93mm width, and fin height of 0.500 inches (12.70mm).



Ideal for use in power supplies, motor drives, and other applications requiring efficient thermal management of TO-220 devices.

593002B03400G Quick Information

Product Type: Heat Sink
Canonical Name: Board Level Vertical Heat Sink for TO-220, Rectangular Fins, Aluminum, Black Anodized
Subcategory: TO-220 Heat Sink

593002B03400G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

593002B03400G Estimated Pricing

Qty Low High
1+ $0.97 $0.97
10+ $0.87 $0.87
25+ $0.84 $0.84
50+ $0.82 $0.82
100+ $0.78 $0.78
250+ $0.74 $0.74
500+ $0.72 $0.72
1,200+ $0.70 $0.70
2,400+ $0.66 $0.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

593002B03400G Features

  • Board level vertical design for TO-220 packages.
  • Aluminum construction with black anodized finish.
  • Thermal resistance 13.40°C/W natural convection.
  • Power dissipation 1.0W at 20°C temperature rise.
  • Bolt-on and PC pin attachment method.

593002B03400G Applications

  • Ideal for cooling TO-220 semiconductor devices.
  • Suitable for natural convection and forced air cooling.
  • Used in power supply and motor control circuits.

593002B03400G FAQs

7 frequently asked questions generated from this part’s specifications.
What package is this heat sink designed to cool?

TO-220

What is the thermal resistance under natural convection?

13.40°C/W

What is the thermal resistance at 600 LFM forced air flow?

4.00°C/W

What is the power dissipation capability at 20°C temperature rise?

1.0W

What material is the heat sink made of?

Aluminum

What is the surface finish?

Black anodized

Is this product RoHS compliant?

Yes, RoHS3 Compliant.
