| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
127 pcs
|
127 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Length | |
| Cable Type | |
| Insulation Resistance | |
| Operate Time | |
| Operating Temperature | |
| Power | |
| Release Time | |
| Storage Temperature | |
| Switch Type | |
| Switching Voltage | |
| Termination | |
| Termination Style |

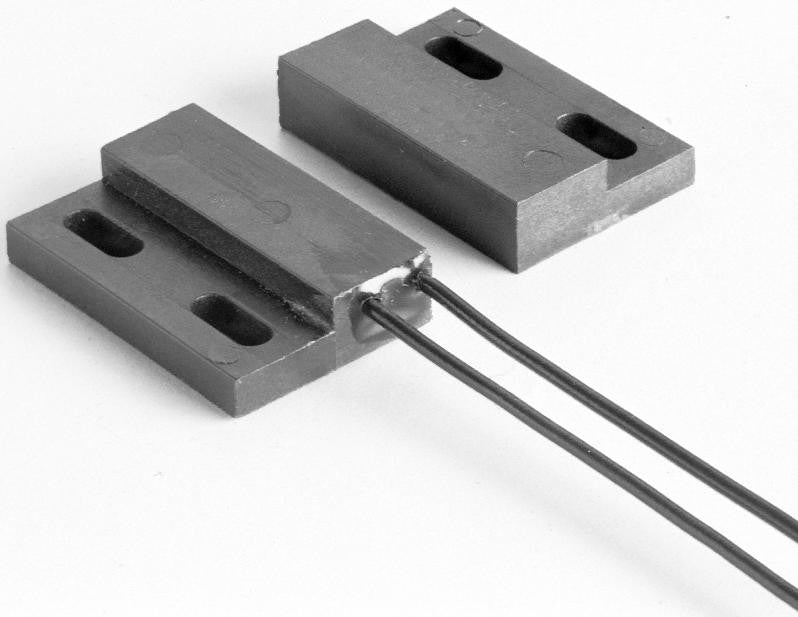

The HAMLIN 59145-020 is a magnetically operated proximity sensor, specifically a reed switch, designed for various sensing applications. This normally open switch is rated for a maximum switching voltage of 200 Vdc and a maximum switching current of 0.5 A.
With an initial contact resistance of 0.2 Ω maximum and an insulation resistance of 10 Ω minimum, the 59145-020 ensures signal integrity. It operates within a temperature range of -40 to +105 °C, making it suitable for diverse environmental conditions. The switch exhibits a fast operate and release time, both at a maximum of 1.0 ms, and can withstand significant mechanical stress with shock resistance up to 100 G and vibration resistance up to 30 G.
This reed switch comes with a 24 AWG PVC cable, 105°C rated, compliant with UL1430/UL1569 standards. The standard configuration includes tinned or untinned leads and a cable length of 300 mm. The sensitivity options allow for adjustable pull-in and activate distances, with a typical pull-in distance of 12-18 mm for option S.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40 to +105 °C.
200 Vdc.
0.5 A.
Operate time is 1.0 ms maximum; release time is 1.0 ms maximum.
For the standard sensitivity option (S), the pull-in distance is 12-18 mm. An alternative option provides 17-23 mm.
The cable length is 300 mm.
Initial contact resistance is 0.2 Ω maximum.
