| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
447 pcs
|
447 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Mounting Type | |
| Must Operate | |
| Operating Temperature | |
| Output Type | |
| Termination Style | |
| Type |

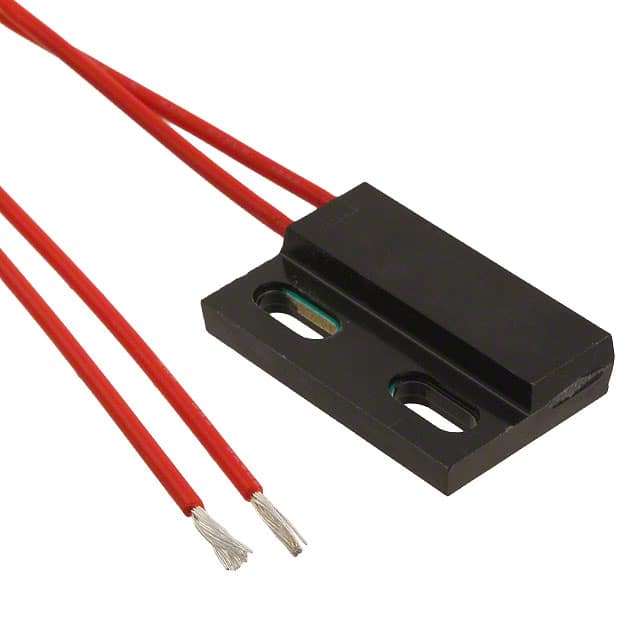

The Littelfuse Inc. 59135-1-S-02-A is a reed switch designed for various sensing applications. It features a Normally Open (SPST-NO) output configuration, making it suitable for simple switching tasks.
This reed switch operates within a wide temperature range, from -40°C to 105°C (TA), ensuring reliable performance in diverse environmental conditions. The actuation distance is specified at 19.00mm, indicating the proximity required for activation.
Designed with wire leads for termination, the 59135-1-S-02-A offers straightforward integration into electronic circuits. It is also equipped with a flange mount for secure physical installation. The actuator material is a magnet, which is typical for reed switch operation.
While compliance data such as RoHS, REACH, and MSL are listed as compliant or unaffected, these statuses are unverified and should be confirmed with official documentation. The part is classified under Magnetic Sensors - Position, Proximity, Speed (Modules) category.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 105°C (TA)
SPST-NO
19.00mm
Flange Mount
Wire Leads
