| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
992 pcs
|
992 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Inductance | |
| Insulation Diameter | |
| Insulation Material | |
| Temperature Range | |
| Voltage Rating |

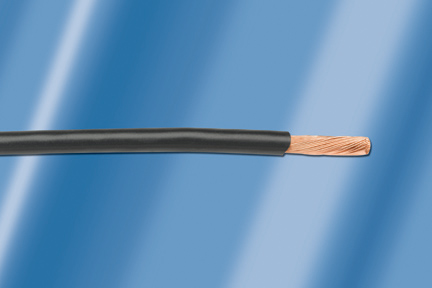

The Alpha Wire 5858 is a high-performance hook-up wire suitable for a wide range of applications, from control cabinets to machine tools and high-temperature environments. It features a 16 AWG silver-plated copper conductor with a PTFE insulation offering a nominal diameter of 0.080 inches.
This wire is built to withstand extreme conditions, with an operating temperature range of -60°C to 200°C. It meets several key specifications, including UL AWM/STYLE 1213 (105°C VW-1) and Military MIL-W-16878/4 (Type E) standards, rated for 600 VRMS.
Compliance includes RoHS2 and RoHS3 directives, and it is REACH unaffected. The wire is available in various colors and is supplied in packaging options such as 100 FT spools.
Key electrical properties include a nominal inductance of 0.04 μH/ft and a conductor DCR of 4.4 Ω/1000ft at 20°C. The bend radius is 10 times the cable diameter, and the maximum pull tension is 19.1 lbs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600 VRMS.
-60 to 200°C.
100 feet.
MIL-W-16878/4 Type E, UL AWM Style 1213, and NEMA HP3-EXBJE.
16 AWG silver-plated copper.
PTFE.
19.1 lbs.
