| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Contact Resistance | |
| For Use With | |
| Fuse Type | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Rated Voltage | |
| SVHC Present | |
| Storage Temperature |

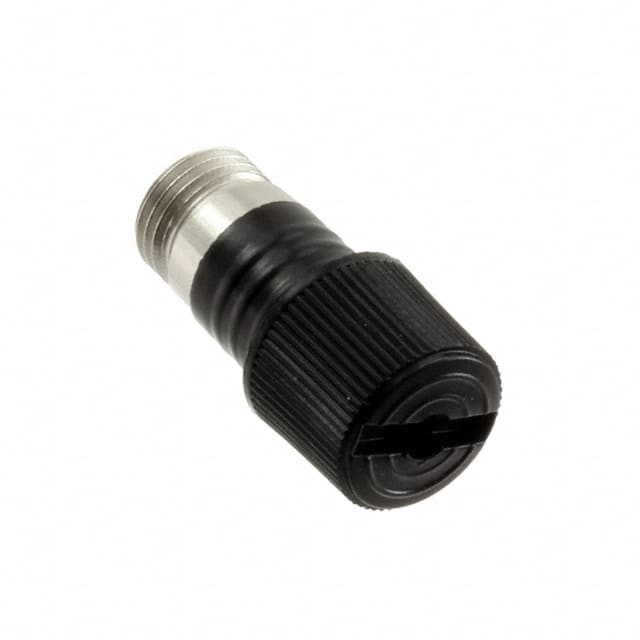

This Littelfuse Inc. 58500000005 is a cap for fuse holders, specifically designed to accommodate 5x20mm fuses. It is part of the 585 Series and offers a rated voltage of 250V and a maximum current rating of 6.3A.
The cap is constructed from black thermoplastic (Polyamide PA 66) with a UL 94 V-0 rating, ensuring durability and safety. The metal parts are made of a corrosion-protected copper alloy. It provides an IP 40 protection class, safeguarding against solid objects larger than 1mm.
With an operating temperature range of -25°C to 70°C, this fuse holder cap is suitable for various environmental conditions. The dimensions are approximately ø11mm in diameter and 18.5mm in length, with a mounting screw thread of M8x0.75.
This accessory is ideal for applications requiring secure and reliable fuse protection for 5x20mm fuses, ensuring proper insulation and electrical integrity.
The rated voltage is 250V.
The maximum current rating is 6.3A.
The operating temperature range is -25°C to 70°C.
The protection class is IP40 per IEC 60529.
It accepts 5x20mm fuses.
The contact resistance is ≤5mΩ.
The mounting type is screw.
