583859-9 Card edge connector housing with 20 positions and 3.96mm pitch. Panel mount design with flange feature for secure installation.
Mfr Part #:

583859-9

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Card edge connector housing with 20 positions and 3.96mm pitch. Panel mount design with flange feature for secure installation.
✓ Total Stock: 816 pcs
$ Price Range: $28.91 - $40.49

583859-9 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
816 pcs
On Request
816 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

583859-9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Features
Flange Feature
Material
Mounting Type
Number of Positions
Pitch
View Similar Products (0)

583859-9 Description

Short technical summary and product information.

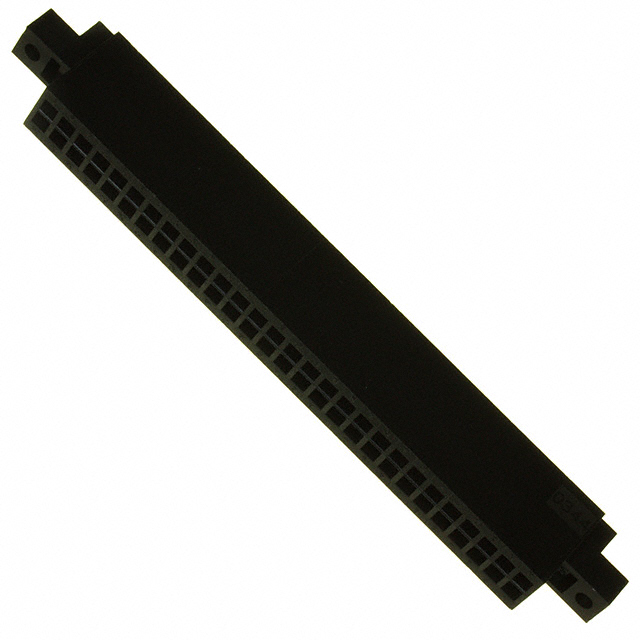

The TE Connectivity 583859-9 is a card edge connector housing designed for use with non-specified dual edge cards. It features 20 positions arranged at a 3.96mm (0.156") pitch, making it suitable for various interconnect applications. The housing is constructed from black polyester thermoplastic, glass filled for enhanced durability. It is designed for panel mounting with a top mount opening, unthreaded, 0.128" (3.25mm) diameter flange feature. The housing accepts card thicknesses ranging from 0.055" to 0.070" (1.40mm to 1.78mm). This connector housing is part of TE Connectivity's card edge connector family and is RoHS and REACH compliant.

583859-9 Quick Information

Product Type: Card Edge Connector Housing
Series: TWN LF CONN
Canonical Name: Card Edge Connector Housing, 20 Position, 3.96mm Pitch, Panel Mount
Subcategory: Non Specified - Dual Edge

583859-9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

583859-9 Estimated Pricing

Qty Low High
1+ $40.49 $40.49
10+ $34.40 $34.40
25+ $32.71 $32.71
50+ $31.65 $31.65
100+ $30.60 $30.60
250+ $28.91 $28.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

583859-9 Features

  • 20 positions with 3.96mm pitch spacing.
  • Panel mount design with flange feature.
  • Accepts dual edge cards 1.40mm to 1.78mm thick.
  • Black glass-filled polyester thermoplastic housing.
  • RoHS and REACH compliant.

583859-9 Applications

  • Used in card edge connector assemblies.
  • Suitable for panel mounted interconnect systems.
  • Ideal for industrial and consumer electronics.

583859-9 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 583859-9 have?

20 positions.

What is the pitch of the 583859-9?

3.96mm (0.156").

What type of mounting does the 583859-9 support?

Panel mount with a top mount opening, unthreaded, 0.128" (3.25mm) diameter flange feature.

What card thickness does the 583859-9 accept?

0.055" to 0.070" (1.40mm to 1.78mm).

What material is the 583859-9 housing?

Black polyester thermoplastic, glass filled.

Is the 583859-9 RoHS compliant?

Yes, RoHS3 compliant (unverified, low confidence).
