Mfr Part #:

583680-1

Name: 583680-1
Brand: TE Connectivity AMP Connectors
SKU: 583680-1

Description:

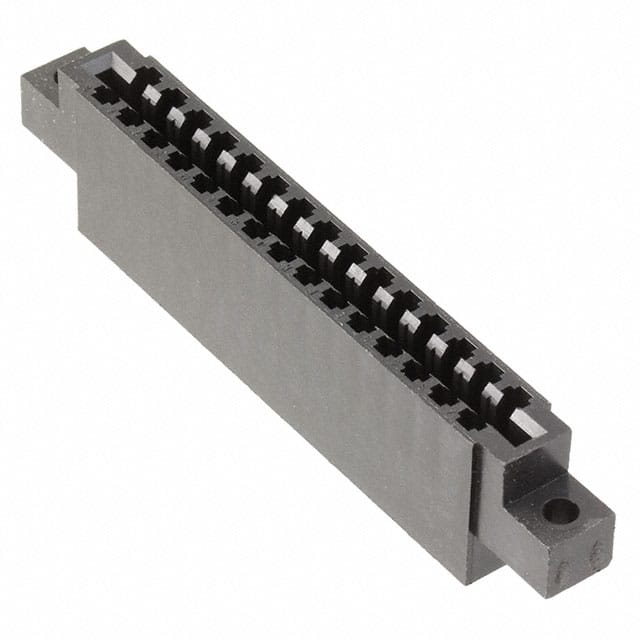

CONN CARDEDGE HSG 30POS .156 BLK

Stock on Request

583680-1 Description

Short technical summary and product information.

CONN CARDEDGE HSG 30POS .156 BLK

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

583859-7

TE Connectivity AMP Connectors

CONN CARDEDGE HSG 30POS .156 BLK

583301-1

TE Connectivity AMP Connectors

CONN CARDEDGE HSG 30POS .156 BLK

Category	Card Edge Connector Housings
Manufacturer Name	TE Connectivity AMP Connectors
Card Thickness	0.055" ~ 0.070" (1.40mm ~ 1.78mm)
Card Type	Non Specified - Dual Edge
Color	Black
Features	Flange
Flange Feature	Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Mounting Type	Panel Mount
Number of Positions	30
Pitch	0.156" (3.96mm)
