Mfr Part #:

580200B00000G

Name: 580200B00000G
Brand: Aavid, Thermal Division of Boyd Corporation
SKU: 580200B00000G

Description:

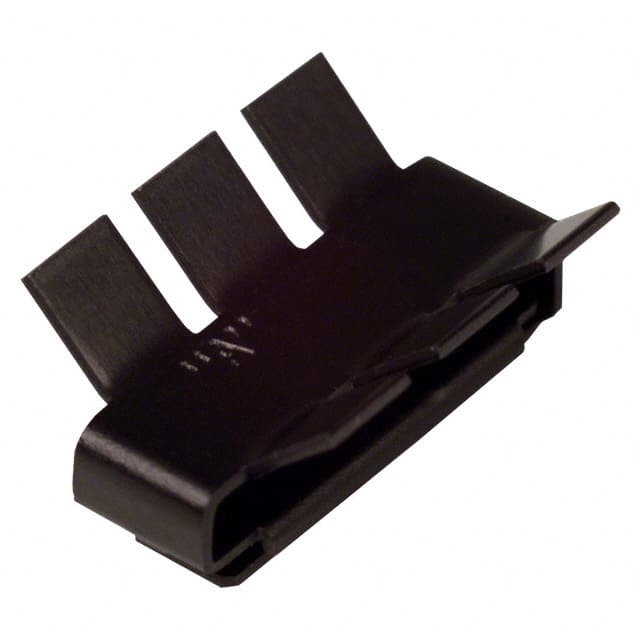

HEATSINK 14-16 DIP BLK ANODIZED

Stock on Request

580200B00000G Description

Short technical summary and product information.

HEATSINK 14-16 DIP BLK ANODIZED

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

560200B00000G

Aavid, Thermal Division of Boyd Corporation

BOARD LEVEL HEAT SINK

Category	Heat Sinks
Manufacturer Name	Aavid, Thermal Division of Boyd Corporation
Attachment Method	Press Fit, Slide On
Fin Height	0.410" (10.42mm)
Length	0.890" (22.61mm)
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	14-DIP and 16-DIP
Power Dissipation @ Temperature Rise	1.0W @ 20°C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	12.00°C/W @ 200 LFM
Thermal Resistance @ Natural	20.00°C/W
Type	Top Mount
Width	0.600" (15.24mm)
