| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

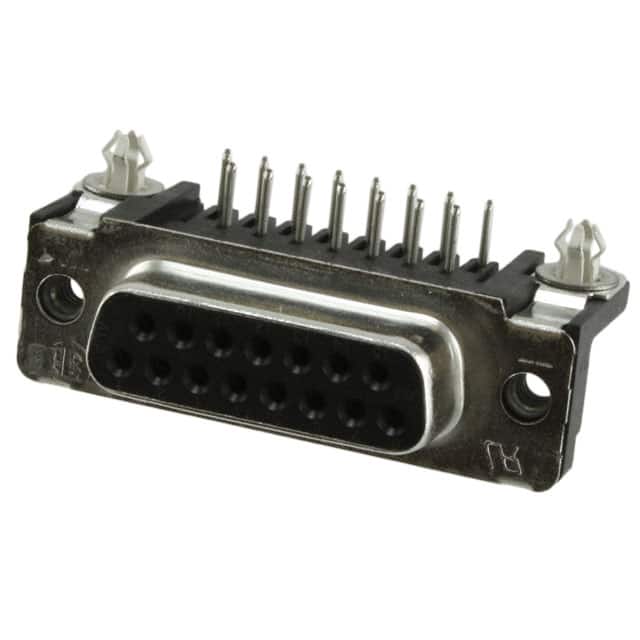

The TE Connectivity 5788798-1 is a D-Sub receptacle connector designed for reliable signal interconnections. It features 15 positions arranged in 2 rows, with female socket contacts that are gold plated to 30 microinches for corrosion resistance and reliable mating cycles.
This connector uses a through hole, right angle mounting style with solder termination, making it suitable for PCB applications where space constraints require a right angle orientation. The shell is steel with tin plating, and the connector layout is shell size 2 (DA, A). It includes a board lock feature for secure attachment during soldering.
The housing is rated UL94 V-0 for flammability, and the connector is rated for 6A current per contact. The backset spacing is 0.318 inches (8.08mm). This part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
The connector has 15 positions arranged in 2 rows.
It is a through hole, right angle mounting connector with solder termination.
The current rating is 6A per contact.
The contacts have a gold finish with a thickness of 30 microinches (0.76 micrometers).
The shell size is 2 (DA, A).
