| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

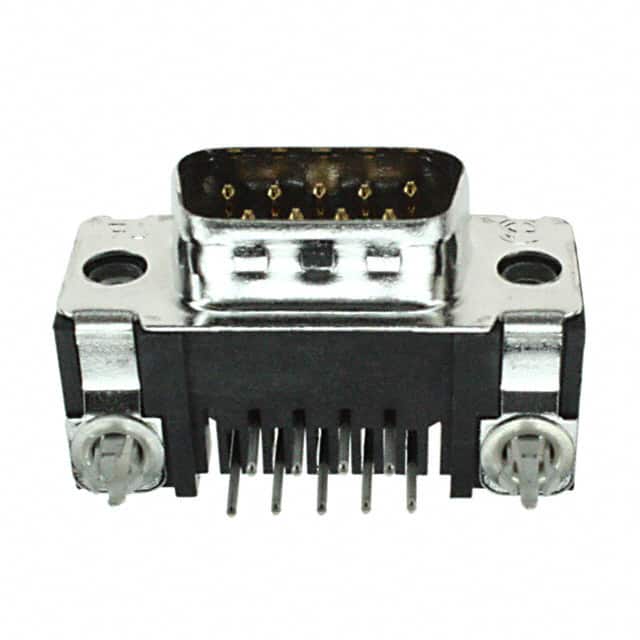

The TE Connectivity 5788792-1 is a D-Sub connector assembly featuring a plug with male pins in a 9-position, 2-row configuration. It is designed for through-hole mounting with a right-angle orientation, making it suitable for applications where space constraints require a low-profile connection. The contacts are gold-plated for reliable signal transmission, and the steel shell is tin-plated for durability and EMI shielding. The connector includes a housing/shell flange feature with 4-40 threads for secure mating, along with board locks and grounding indents for enhanced mechanical retention and grounding. It is rated for a current of 6A and has a UL94 V-0 flammability rating for the insulator material. The backset spacing is 0.318 inches (8.08mm). This connector is commonly used in data communication, industrial control, and instrumentation equipment.
Plug, Male Pins, D-Sub style.
9 positions arranged in 2 rows.
Through Hole, Right Angle with solder termination.
6A.
Gold.
Steel, Tin Plated.
UL94 V-0.
