| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Specifications | |
| Termination | |
| Termination Style | |
| Voltage |

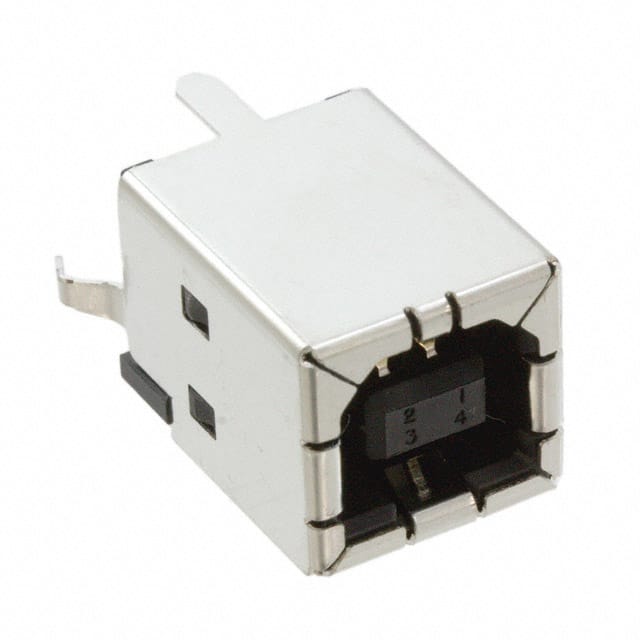

This TE Connectivity 5788336-1 is a USB Type-B receptacle connector designed for USB 2.0 applications. It features 4 contacts in a single port configuration with a receptacle gender orientation. The connector is mounted vertically using through hole solder termination and includes a board lock feature for secure attachment to the PCB.
Electrical ratings include 1A per contact current handling and 30VAC voltage rating, suitable for standard USB 2.0 power and signal delivery. The operating temperature range spans -55°C to 85°C, allowing use in a variety of environments. With 1500 mating cycles rated durability, this connector is built for repeated use.
The vertical mounting orientation and compact USB Type-B form factor make it appropriate for embedded systems, data acquisition devices, and industrial controls where a secure standard USB connection is needed.
1A per contact.
30VAC.
Through hole with vertical orientation and solder termination.
1500 cycles.
-55°C to 85°C.
Yes, it includes a board lock.
