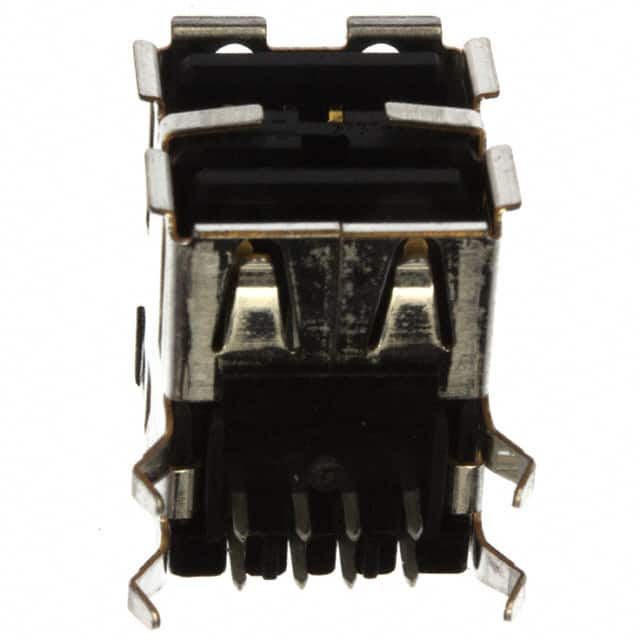

5787745-2 TE Connectivity 5787745-2 is a USB 2.0 Type-A stacked receptacle connector with 8 contacts and 2 ports. It features a through hole, right angle mounting with board lock.
Mfr Part #:

5787745-2

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5787745-2 is a USB 2.0 Type-A stacked receptacle connector with 8 contacts and 2 ports. It features a through hole, right angle mounting with board lock.
✓ Total Stock: 67 pcs
$ Price Range: $2.12 - $3.14

5787745-2 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
44 pcs
On Request
44 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
23 pcs
On Request
23 pcs On Request 1 On Request On Request 1016 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5787745-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Current Rating (Amps)
Features
Gender
Mating Cycles
Mounting Feature
Mounting Type
Number of Contacts
Number of Ports
Operating Temperature
Specifications
Termination
Termination Style
Voltage
View Similar Products (0)

5787745-2 Description

Short technical summary and product information.

The TE Connectivity 5787745-2 is a USB 2.0 Type-A stacked receptacle connector designed for reliable data and power connections. This connector features a stacked dual-port configuration, providing two USB-A receptacles in a single package to save board space.



Key electrical specifications include a current rating of 1 A per contact and a voltage rating of 30 VAC. The connector is rated for USB 2.0 data transfer speeds and is designed for through hole, right angle mounting, making it suitable for edge-mounted applications on printed circuit boards.



The connector includes a board lock feature for secure attachment during soldering. It is rated for 1500 mating cycles, ensuring durability in repeated use applications. The operating temperature range is -55°C to 85°C, allowing use in a wide variety of environments.

5787745-2 Quick Information

Product Type: USB Connector Assembly
Canonical Name: TE Connectivity 5787745-2 USB 2.0 Type-A Stacked Receptacle Connector
Subcategory: USB Type-A Receptacle

5787745-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5787745-2 Estimated Pricing

Qty Low High
1+ $3.14 $3.14
10+ $2.87 $2.87
25+ $2.40 $2.40
88+ $2.28 $2.28
264+ $2.20 $2.20
528+ $2.17 $2.17
1,056+ $2.12 $2.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

5787745-2 Features

  • USB 2.0 Type-A stacked dual-port receptacle.
  • Through hole, right angle mounting with board lock.
  • Rated for 1 A per contact and 30 VAC.
  • Durable with 1500 mating cycles.
  • Wide operating temperature range -55°C to 85°C.

5787745-2 Applications

  • Ideal for space-constrained dual USB port designs.
  • Suitable for industrial control and automation equipment.
  • Used in consumer electronics and peripheral devices.
  • Applicable for test and measurement instrumentation.

5787745-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 5787745-2 connector?

The current rating is 1 A per contact.

What is the voltage rating of the 5787745-2 connector?

The voltage rating is 30 VAC.

What is the mounting type for the 5787745-2 connector?

The mounting type is through hole, right angle.

How many ports does the 5787745-2 connector have?

It has 2 ports in a stacked configuration.

What USB version does the 5787745-2 support?

It supports USB 2.0.

What is the operating temperature range for the 5787745-2?

The operating temperature range is -55°C to 85°C.

How many mating cycles is the 5787745-2 rated for?

It is rated for 1500 mating cycles.
