| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,992 pcs
|
2992 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Current Rating (Per Contact) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Orientation | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature Range | |
| SVHC Present | |
| Specifications | |
| Termination | |
| Termination Style | |
| USB Connector Type | |
| USB Standard | |
| Voltage | |
| Voltage Rating |

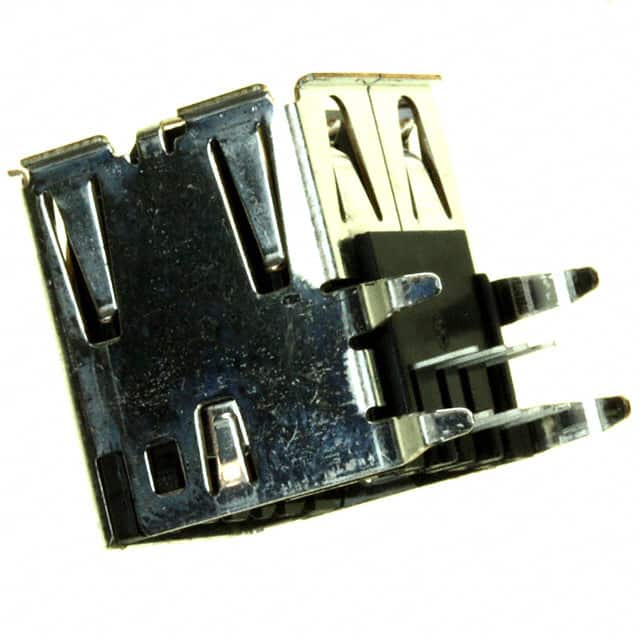

The 5787745-1 is a USB 2.0 Type-A stacked receptacle from TE Connectivity. It features a right angle through hole mounting with solder termination and includes a board lock for secure attachment. The connector has 2 ports and 8 contacts, rated at 1A per contact and 30 VAC. It is designed for operating temperatures from -55°C to 85°C and is rated for 1500 mating cycles. The USB standard is 2.0, and the connector is USB-A type. This component is suitable for applications requiring a compact, dual-port USB solution in a right angle orientation. The housing is not detailed, but the shell material was originally copper alloy, though a cancelled PCN proposed stainless steel. Compliance data shows RoHS3, MSL 1, and REACH unaffected, but these are unverified.
1A per contact.
30 VAC.
Through hole, right angle.
It is listed as RoHS3 compliant.
-55°C to 85°C.
1500 cycles.
USB 2.0.
