| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 45798 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

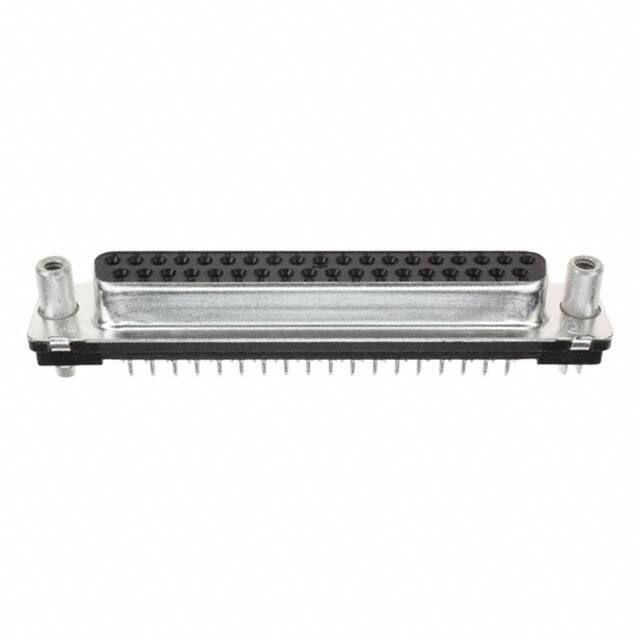

The TE Connectivity 5787685-1 is a D-Sub receptacle connector offering 37 positions arranged in 2 rows. The connector uses female socket contacts designed for signal applications and is terminated via through hole solder. Contacts are gold plated with a thickness of 0.76µm (30µin) ensuring reliable signal integrity and corrosion resistance. The shell is constructed from steel with a tin plated finish and has a shell size of 4 (DC, C). The flange features a mating side female screwlock (4-40) for secure mating. This connector includes a board lock feature for mechanical retention on the PCB and has a current rating of 6A. The insulator material is rated UL94 V-0 for flammability. The mounting type is through hole making it suitable for vertical mounting on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.46 | $21.46 |
| 7+ | $18.24 | $18.24 |
| 28+ | $17.10 | $17.10 |
| 56+ | $16.28 | $16.28 |
| 105+ | $15.50 | $15.50 |
| 252+ | $14.53 | $14.53 |
| 504+ | $13.88 | $13.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle with female sockets.
37 positions.
Through hole.
6A.
