| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,640 pcs
|
2640 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | 2111 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Specifications | |
| Termination | |
| Termination Style | |
| Voltage |

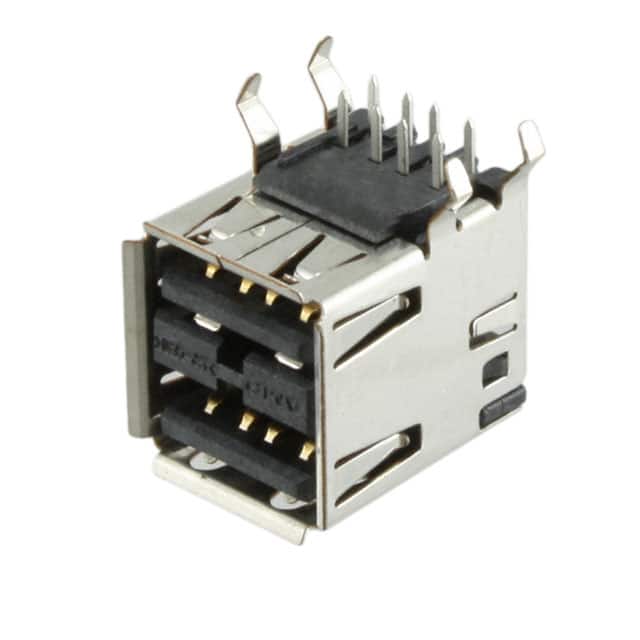

The TE Connectivity 5787617-4 is a USB 2.0 Type-A stacked receptacle designed for through-hole mounting with a right-angle orientation. It features 8 contacts and 1 port, with a board lock for secure attachment. The connector is rated for 1A per contact and 30VAC, supporting 1500 mating cycles. Its operating temperature range of -55°C to 85°C makes it suitable for a variety of environments.
This device uses a stainless steel shell with post-plating, as per product change notification E-18-004075, ensuring durability and improved manufacturing quality. The solder termination provides reliable electrical connections. The right-angle design allows for space-efficient PCB layouts, common in stacked connector applications.
Ideal for USB 2.0 applications, this receptacle is suitable for industrial and consumer electronics where a compact, robust connection is needed. The board lock feature prevents dislodging during assembly or use. The part is listed as RoHS, REACH, and MSL 1 compliant, though these statuses are unverified.
8 contacts.
1A per contact.
30VAC.
Through hole, right angle.
USB 2.0.
1500 mating cycles.
Stainless steel with post-plating, per product change notification E-18-004075.
