5787190-5

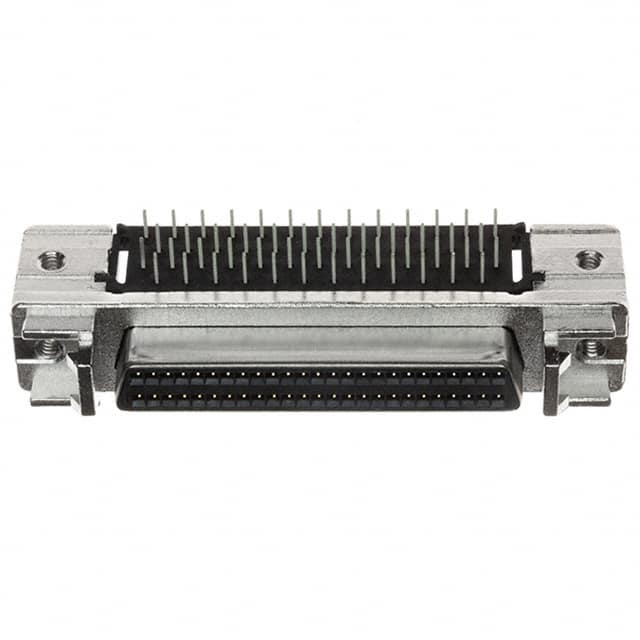

The TE Connectivity 5787190-5 is a D-Sub receptacle connector from the AMPLIMITE 0.50 series. It is designed for cable-to-board connections and features 50 positions arranged in 2 rows with a 1.27mm pitch and 2.54mm row-to-row spacing. The connector is mounted using board edge, through-hole, right angle orientation, making it suitable for compact PCB layouts where space is limited. Termination is via solder to the printed circuit board. The contact base material is phosphor bronze with a gold flash over palladium nickel underplating, providing reliable signal integrity. The shell is made of steel with nickel plating over copper, offering EMI shielding. The housing is thermoplastic with a UL94 V-0 flammability rating, ensuring safety in various environments. The operating temperature range is -55°C to 105°C, and the current rating per contact is 1A. The connector is RoHS3 compliant and has an MSL of 1 (unlimited). This connector is suitable for applications requiring high-density signal connections in industrial, automotive, and data communications equipment.
