| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

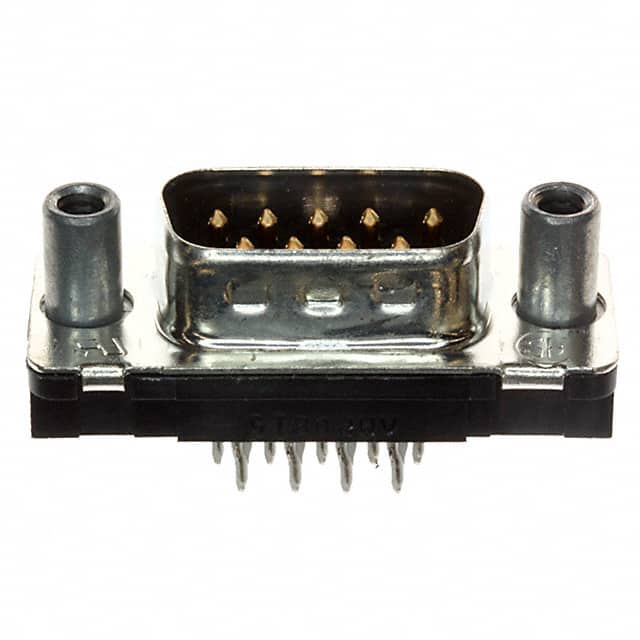

The TE Connectivity 5787176-1 is a 9-position D-Sub plug connector with male pins arranged in 2 rows. It uses a standard DE-9 shell size (1 (DE, E)) and is designed for vertical mounting with through-hole press-fit termination, making it suitable for board-to-cable or panel-mount applications where a secure, solderless connection is required.
The connector features gold-plated signal contacts for reliable electrical performance and a steel shell with tin plating for durability and shielding. It includes grounding indents to enhance grounding and EMI performance, and a mating-side female screwlock (4-40) flange feature for secure mating with a corresponding D-Sub receptacle.
The insulator material is rated UL94 V-0 for flammability, supporting use in a variety of industrial and commercial environments. The vertical orientation and press-fit termination allow for efficient automated assembly in through-hole PCB designs.
This D-Sub plug is commonly used in data communication, industrial control, and instrumentation applications where a compact 9-pin interface is needed. Its press-fit termination eliminates the need for soldering, reducing assembly time and improving manufacturing throughput.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.58 | $14.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a plug with male pins, D-Sub style.
It has 9 positions arranged in 2 rows.
It is through-hole mounted with press-fit termination.
The shell size is 1 (DE, E), which corresponds to a DE-9 layout.
The contacts have a gold finish.
The shell is steel with tin plating.
The material flammability rating is UL94 V-0.
