| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
952 pcs
|
952 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
598 pcs
|
598 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
598 pcs
|
598 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

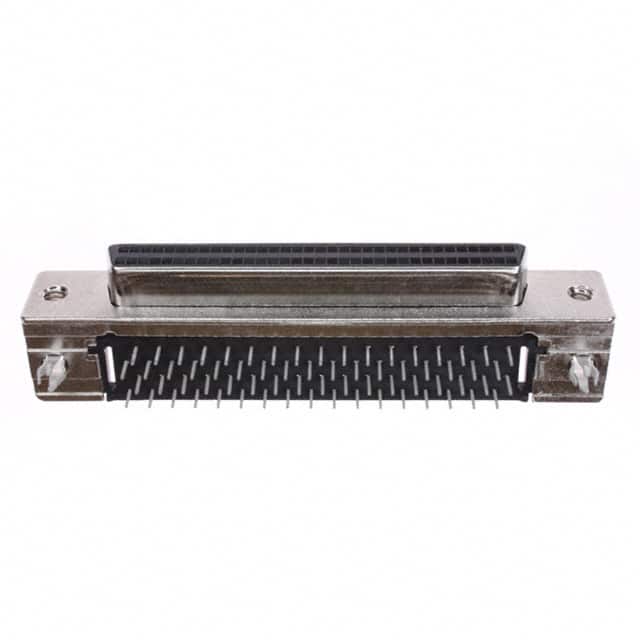

The TE Connectivity 5787170-7 is a D-Sub connector assembly featuring 68 positions in a D-Type receptacle configuration. It is designed for board edge, through hole, and right angle mounting with solder termination. The contacts are gold plated for signal reliability, and the shell is made of steel with nickel plating, providing shielding against electromagnetic interference. The connector includes a board lock feature for secure attachment to the PCB. The insulator material has a flammability rating of UL94 V-0. The backset spacing is 0.146 inches (3.71mm), and the flange feature uses housing/shell (4-40) thread. The connector is rated for 1A per contact and is suitable for high-density signal applications in data communication, industrial control, and computer peripheral interfaces.
68 positions in 2 rows.
0.050 inch (1.27mm) contact pitch with 0.100 inch row spacing.
1A per contact.
Board edge, through hole, right angle mounting.
Solder termination.
UL94 V-0.
0.146 inches (3.71mm).
