| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

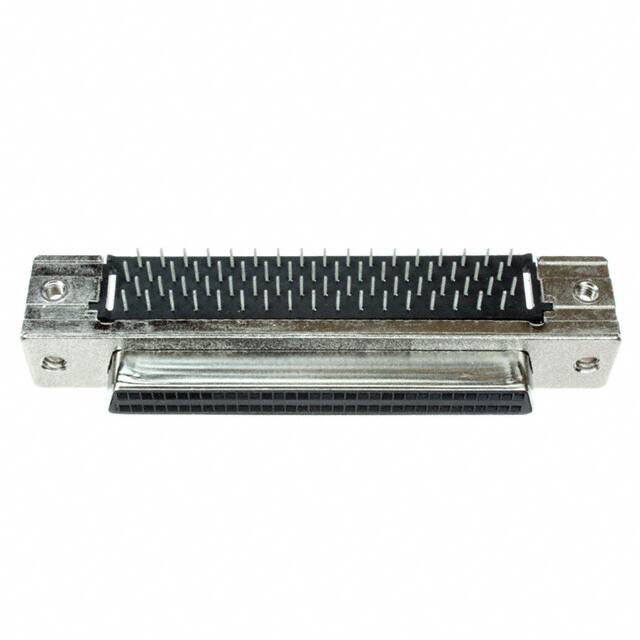

The TE Connectivity 5787169-7 is a D-Sub connector assembly designed as a receptacle with female sockets. It features 68 positions arranged in 2 rows, making it suitable for high-density signal connections. The connector uses a D-Type shell style with a 0.050 inch pitch and 0.100 inch row-to-row spacing.
This connector is mounted via board edge, through hole, right angle configuration and terminated by solder. It includes a shielded feature for electromagnetic interference protection. The shell is made of steel with nickel plating, and the flange uses a housing/shell (4-40) thread. The backset spacing is 0.146 inches (3.71mm).
Electrical rating is 1A per contact. The contact finish is gold for reliable signal integrity. The insulator material has a flammability rating of UL94 V-0. This connector is suitable for applications requiring a robust, shielded D-Sub interface with a high pin count.
It is a D-Sub receptacle with female sockets, D-Type style.
It has 68 positions arranged in 2 rows.
Board edge, through hole, right angle mounting with solder termination.
The current rating is 1A per contact.
Yes, it features a shielded design with a steel, nickel plated shell.
The material flammability rating is UL94 V-0.
