| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
606 pcs
|
606 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

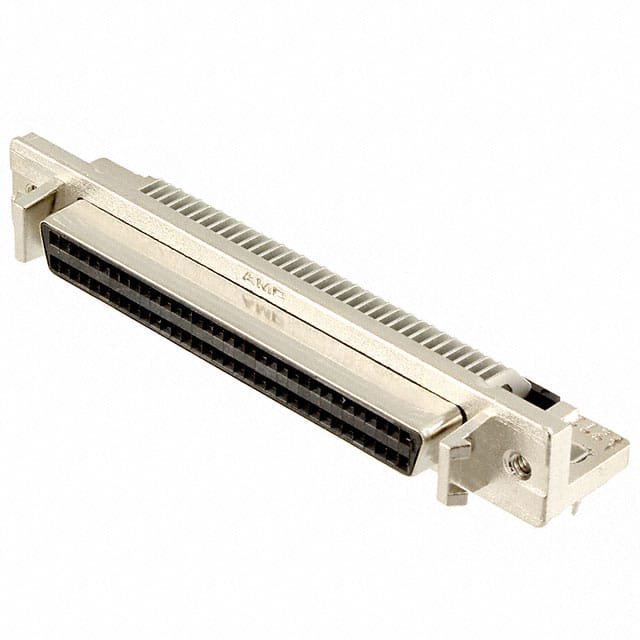

The TE Connectivity 5787083-7 is a 68-position D-Sub receptacle connector designed for board edge, through-hole, right angle mounting. It features female sockets with gold contact finish for reliable signal connections. The connector has a steel, nickel-plated shell and includes board lock and shielding features for enhanced mechanical stability and EMI protection.
This connector uses a 0.050 inch pitch with 0.100 inch row-to-row spacing and has a backset spacing of 0.146 inches (3.71mm). It is rated for 1A current per contact and is suitable for signal applications. The housing material has a UL94 V-0 flammability rating.
The connector is terminated via solder and is designed for use in applications requiring a compact, high-density D-Sub interface. The flange feature includes housing/shell (2-56) and latchblocks for secure mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.07 | $17.07 |
| 16+ | $14.04 | $14.04 |
| 32+ | $13.37 | $13.37 |
| 56+ | $12.85 | $12.85 |
| 104+ | $12.30 | $12.30 |
| 256+ | $11.54 | $11.54 |
| 504+ | $11.00 | $11.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 68 positions arranged in 2 rows.
It is designed for board edge, through-hole, right angle mounting with solder termination.
The current rating is 1A per contact.
The contacts have a gold finish.
Yes, it features a shielded steel shell with nickel plating.
The material flammability rating is UL94 V-0.
