| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
710 pcs
|
710 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
710 pcs
|
710 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Centerline (Pitch) | |
| Connector Style | |
| Connector System | |
| Connector Type | |
| Contact Base Material | |
| Contact Finish | |
| Contact Mating Area Plating Material | |
| Contact Mating Area Plating Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Sealable | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Shell Type | |
| Shielded | |
| Termination | |
| Termination Method | |
| Termination Post Length |

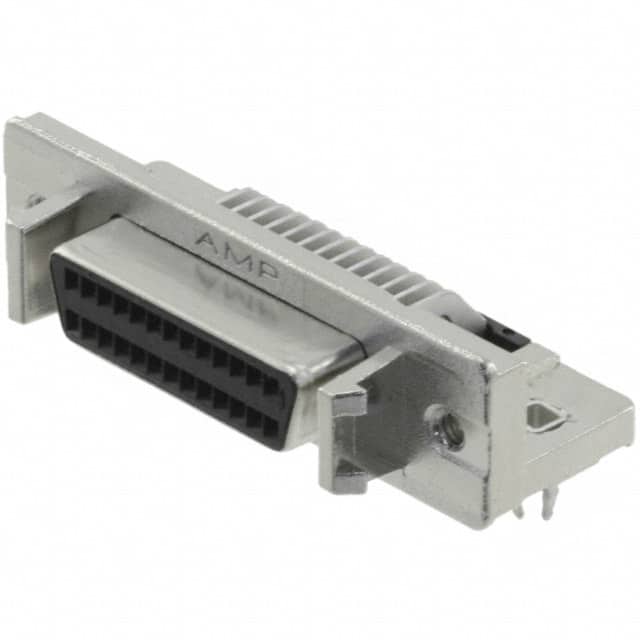

The TE Connectivity 5787082-2 is a D-Type receptacle connector from the AMPLIMITE 0.50 Series. It features 26 female socket contacts arranged for a cable-to-board system. The connector utilizes a right angle through hole solder termination with a 1.27 mm centerline pitch.
This shielded connector is constructed with a full metal steel shell with nickel plating. Contacts are made of phosphor bronze with a 30 microinch gold flash plating on the mating area. The housing is rated UL94 V-0, and the connector is not sealable. Flange features include housing/shell (2-56) threads and latchblocks.
Designed for board edge mounting, this part is intended for high-density D-Sub applications requiring a 0.050 inch pitch and 0.100 inch row spacing. The backset spacing is 0.146 inches (3.71 mm).
The 5787082-2 has 26 positions.
The centerline pitch is 1.27 mm (0.050 inches).
The current rating is 1 A.
Mounting type is board edge, through hole, right angle.
