| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Pitch | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| SVHC Present | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

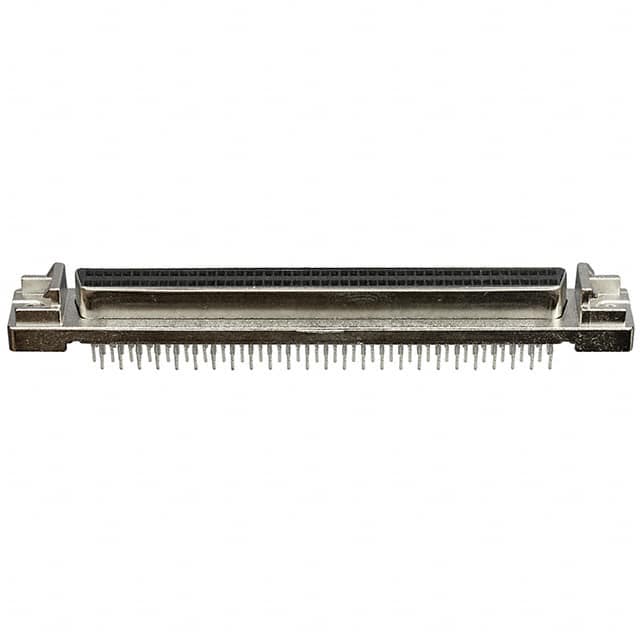

The TE Connectivity 5786554-9 is a D-sub receptacle from the AMPLIMITE .050 Series. It offers 100 positions arranged in 2 rows with a contact pitch of 0.050 in (1.27 mm) and row spacing of 0.100 in (2.54 mm). The connector uses female socket contacts with gold plating for reliable signal transmission. Termination is via press-fit, suitable for through-hole mounting on PCBs. The connector has a shielded metal shell made of steel with nickel plating, providing EMI/RFI protection. The flange feature includes housing/shell (2-56) and latchblocks with rails for secure mating. The insulator material has a flammability rating of UL94 V-0. This connector is designed for applications in industrial machinery, medical instrumentation, computers, and peripherals. It is rated for 1 A current per contact. The connector is RoHS compliant and has a moisture sensitivity level of 1 (unlimited).
100 positions.
0.050 in (1.27 mm).
1 A.
Through hole.
Press-fit.
2 rows.
Steel, nickel plated.
