| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

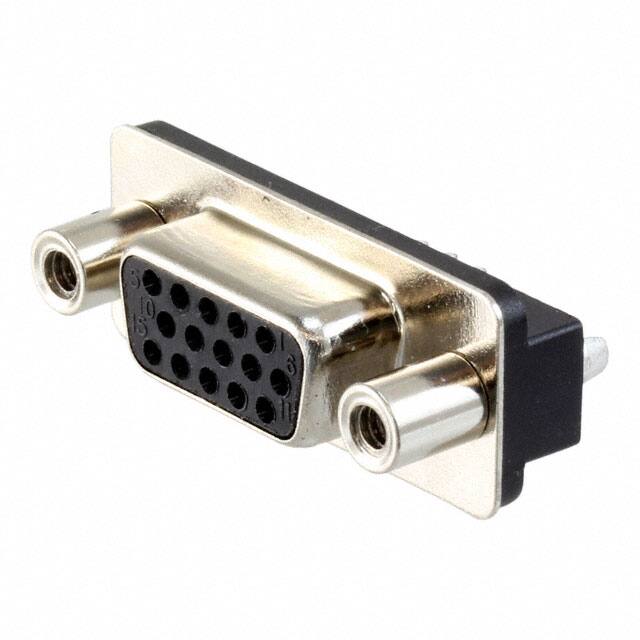

The TE Connectivity 5786382-1 is a D-Sub High Density receptacle designed for vertical through-hole mounting with solder termination. It accommodates 15 female socket contacts arranged in 3 rows, making it suitable for space-constrained applications requiring a higher pin count in a compact shell size (DE, E).
This connector features gold-plated signal contacts with a thickness of 0.76 µm for reliable conductivity and corrosion resistance. The shell is constructed from steel with a nickel plating, and includes a mating-side female screwlock (4-40) flange feature and a board lock for secure attachment. The insulator material meets UL94 V-0 flammability rating, suitable for environments requiring flame retardant properties.
With a current rating of 1.5A per contact, this part is appropriate for signal-level interconnections in electronic assemblies. Its high-density layout allows efficient use of PCB real estate while maintaining compatibility with standard D-Sub accessories.
The current rating is 1.5A per contact.
It is a through-hole mount with solder termination.
It has 15 positions arranged in 3 rows.
The contacts have a gold finish with a thickness of 0.76 µm.
Yes, it features a board lock for secure PCB attachment.
