| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Length | |
| Material | |
| Material Finish | |
| Package Cooled | |
| Shape | |
| Type | |
| Width |

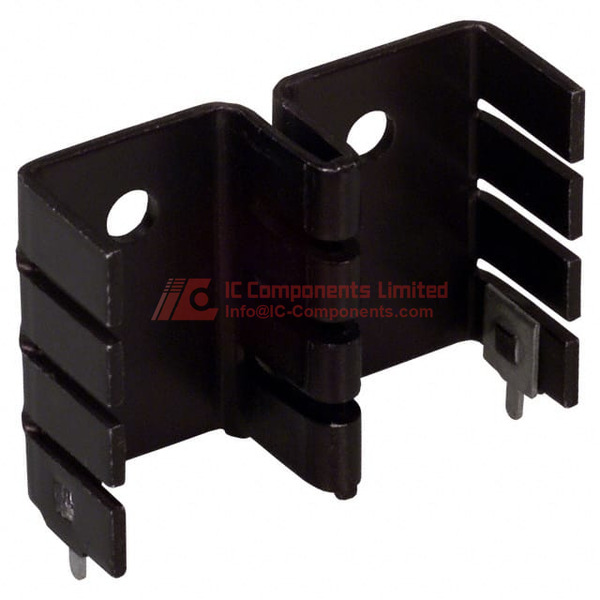

The Aavid, Thermal Division of Boyd Corporation 578622B03200G is a heatsink designed for effective thermal management. It features a TO-220 dual mount package and is constructed from durable aluminum with a black anodized finish for enhanced heat dissipation and corrosion resistance.
Key specifications include a width of 1.480 inches (37.59mm), a length of 1.000 inch (25.40mm), and a fin height of 0.500 inch (12.70mm). The heatsink offers a thermal resistance of 13.20°C/W under natural convection and 3.00°C/W at 700 LFM forced air flow. It can dissipate 2.0W at a 30°C temperature rise.
The attachment method is bolt-on and PC pin, making it suitable for board-level vertical mounting. The heatsink is supplied in bulk packaging. It is RoHS3 compliant and has an MSL of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is designed for TO-220 (Dual) packages.
The thermal resistance is 13.20°C/W under natural convection.
At 700 LFM forced air flow, the typical thermal resistance is 3.00°C/W.
The heat sink is made of aluminum with a black anodized finish.
Width is 1.480" (37.59mm), length is 1.000" (25.40mm), and fin height is 0.500" (12.70mm).
It can be attached using bolt-on and PC pin methods.
The typical power dissipation is 2.0W at a 30°C temperature rise.
