| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

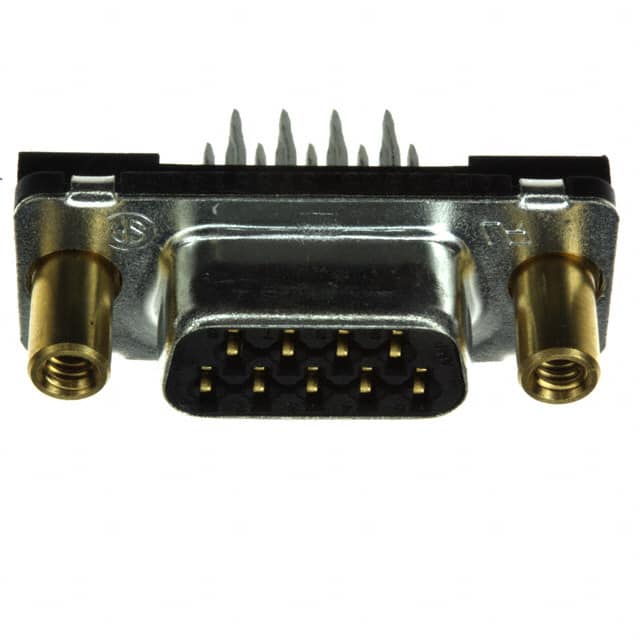

The TE Connectivity 5786143-1 is a 9-position D-Sub receptacle connector with female sockets, designed for reliable signal connections in a compact DE (E) shell size. This connector features a through-hole mounting style with press-fit termination, providing a secure and solderless connection to the PCB.
The connector is built with gold-plated signal contacts, ensuring excellent conductivity and corrosion resistance. The steel shell is tin-plated for durability and EMI shielding. The flange includes a mating-side female screwlock (4-40) for secure mating with a corresponding plug.
With a 2-row configuration and UL94 V-0 flammability rating, this connector is suitable for a wide range of industrial and commercial applications where reliable signal transmission and mechanical stability are required. The press-fit termination is ideal for high-volume manufacturing processes, reducing assembly time and improving reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.95 | $19.95 |
| 10+ | $16.95 | $16.95 |
| 25+ | $15.89 | $15.89 |
| 50+ | $15.13 | $15.13 |
| 130+ | $14.15 | $14.15 |
| 260+ | $13.47 | $13.47 |
| 520+ | $12.83 | $12.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mounting type is Through Hole.
This connector has 9 positions.
The termination style is Press-Fit.
The contact finish is Gold.
The shell size is 1 (DE, E).
The material flammability rating is UL94 V-0.
