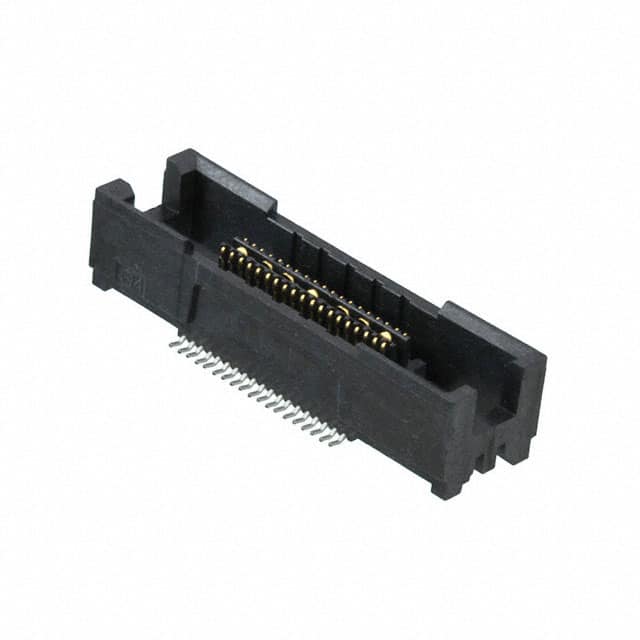

5767110-1 38-position 0.64mm pitch surface mount receptacle connector from TE Connectivity. Features gold contact finish and board guide for secure alignment.
Mfr Part #:

5767110-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
38-position 0.64mm pitch surface mount receptacle connector from TE Connectivity. Features gold contact finish and board guide for secure alignment.
✓ Total Stock: 2,332 pcs
$ Price Range: $14.48 - $14.85

5767110-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
2,332 pcs
On Request
2332 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5767110-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

5767110-1 Description

Short technical summary and product information.

The TE Connectivity 5767110-1 is a 38-position board-to-board receptacle connector designed for mezzanine stacking applications. It features a center strip contact arrangement in 2 rows with a fine 0.64mm pitch, enabling high-density PCB interconnections. The connector is surface mount (SMD) and has a gold contact finish with 30µin thickness for reliable signal integrity.



The connector stands 0.236 inches (6.00mm) above the board and supports multiple mated stacking heights including 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm, providing flexibility for various board-to-board spacings. Additional features include a board guide for accurate alignment during assembly and a ground bus plane for improved electrical performance.

5767110-1 Quick Information

Product Type: Board-to-Board Receptacle Connector
Series: MICT
Canonical Name: 38 Position 0.64mm Pitch Surface Mount Receptacle, Center Strip Contacts
Subcategory: Board-to-Board (BTB) Connector

5767110-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5767110-1 Estimated Pricing

Qty Low High
1+ $14.85 $14.85
21+ $14.84 $14.84
504+ $14.48 $14.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

5767110-1 Features

  • 38 positions in 2 rows with 0.64mm pitch.
  • Surface mount receptacle with gold contact finish.
  • Multiple stacking heights from 6.6mm to 22.86mm.
  • Includes board guide and ground bus plane.

5767110-1 Applications

  • Ideal for mezzanine board stacking in compact electronics.
  • Suitable for high-density PCB interconnection in telecom and data devices.

5767110-1 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 5767110-1 connector have?

38 positions arranged in 2 rows.

What is the pitch of the 5767110-1?

0.64mm (0.025 inches).

What mounting type does the 5767110-1 use?

Surface mount (SMD).

What is the contact finish and thickness?

Gold finish with 30.0µin (0.76µm) thickness.

What are the compatible mated stacking heights?

6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm.

What features does the connector include?

Board guide and ground bus (plane).
