| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present |

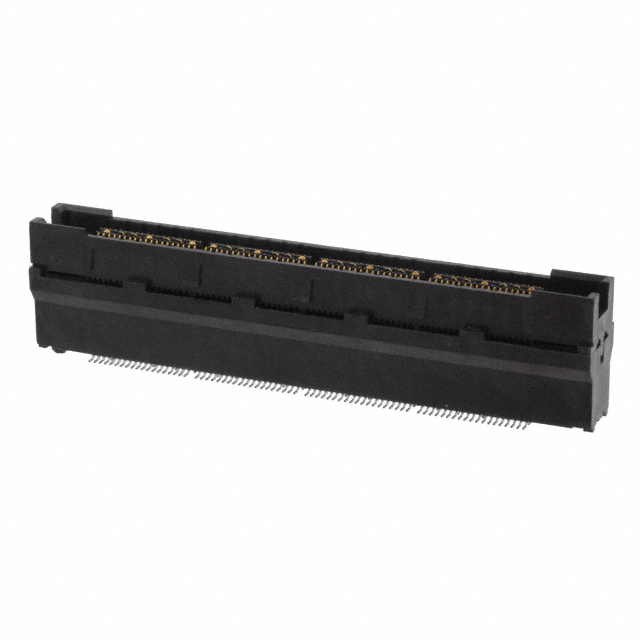

The TE Connectivity 5767094-4 is a 152-position receptacle connector designed for mezzanine board-to-board applications. It features a center strip contact arrangement with 2 rows at a 0.64mm pitch, enabling high-density interconnections. The connector is surface mount mounted and has a height above board of 14.91mm.
Contact finish is palladium-nickel with a thickness of 30.0 microinches (0.76 micrometers), providing reliable electrical performance. The connector includes a board guide and ground bus plane for alignment and grounding. It supports multiple mated stacking heights: 15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, and 31.9mm, offering flexibility in system design.
This connector is suitable for applications requiring high pin count and compact spacing. The surface mount package facilitates automated assembly. Compliance with RoHS, REACH, and MSL level 1 is indicated but unverified.
152 positions in 2 rows.
0.64mm (0.025 inches).
Surface mount.
Palladium-nickel with a thickness of 30.0 microinches (0.76 micrometers).
15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, and 31.9mm.
Yes, it includes a board guide and ground bus (plane).
