| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
82 pcs
|
82 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| EU ELV | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mil-Spec Certified | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Solder Process Capability |

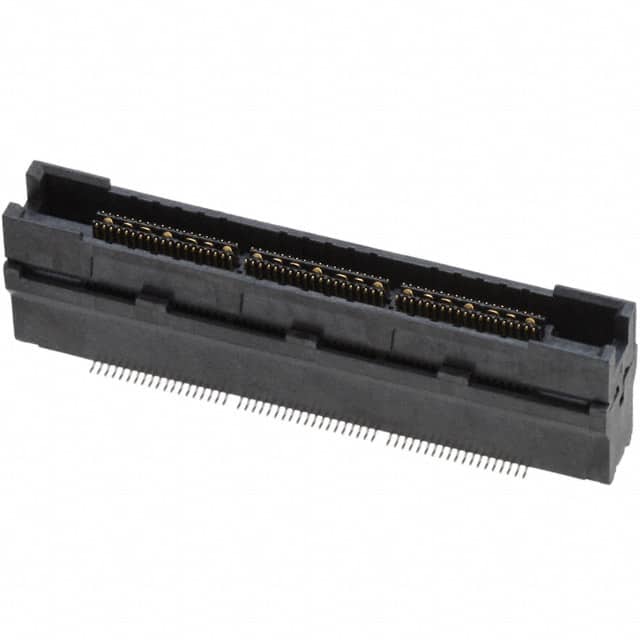

The TE Connectivity 5767094-3 is a 114-position receptacle connector with center strip contacts, designed for high-density board-to-board applications. It features a 0.64mm (0.025") pitch and a 2-row configuration, enabling compact mezzanine stacking. The connector is surface mount (SMD) and has a height above board of 14.91mm, supporting mated stacking heights of 15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, and 31.9mm. Contacts are finished with palladium-nickel (30µin/0.76µm) for durability and reliability. Additional features include a board guide and ground bus (plane) for alignment and signal integrity. The component is reflow solder capable to 260°C and complies with EU RoHS, EU ELV, China RoHS, and EU REACH (no SVHC). It is also low halogen (Br, Cl, F, I <900 ppm) and BFR/CFR/PVC free. This connector is suitable for use in telecom, networking, and industrial equipment requiring reliable, high-density interconnects.
The connector has 114 positions arranged in 2 rows.
The pitch is 0.64mm (0.025").
The connector is surface mount (SMD).
The contact finish is palladium-nickel with a thickness of 30.0µin (0.76µm).
Supported stacking heights: 15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, 31.9mm.
Yes, it is compliant with EU RoHS Directive 2011/65/EU.
It is reflow solder capable to 260°C.
