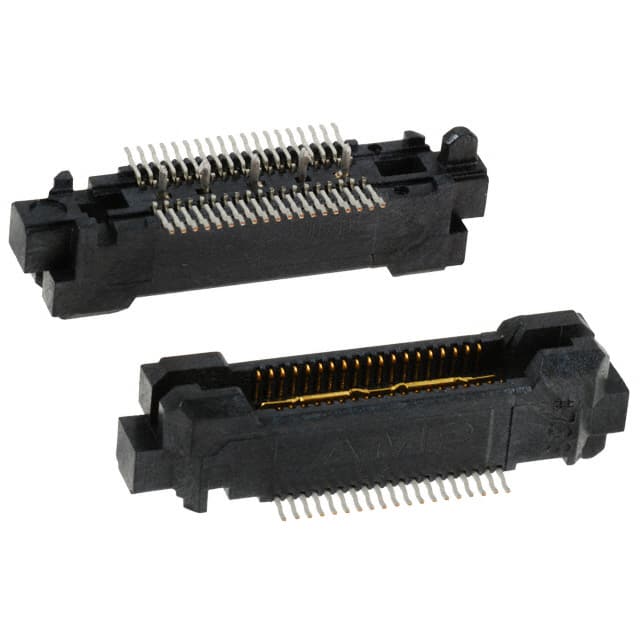

5767007-8 TE Connectivity 5767007-8 is a 38 position plug connector with outer shroud contacts, 0.64mm pitch, and surface mount termination.
Mfr Part #:

5767007-8

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5767007-8 is a 38 position plug connector with outer shroud contacts, 0.64mm pitch, and surface mount termination.
✓ Total Stock: 273 pcs

5767007-8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
273 pcs
On Request
273 pcs On Request 1 On Request On Request 1405 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5767007-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

5767007-8 Description

Short technical summary and product information.

The TE Connectivity 5767007-8 is a 38-position plug connector featuring outer shroud contacts designed for mezzanine (board-to-board) applications. It has a 0.64mm (0.025") pitch and a 2-row configuration, making it suitable for high-density interconnections.



The connector is surface mount compatible and has a height above board of 0.251" (6.38mm). It supports mated stacking heights of 6.6mm and 15.62mm. Contacts are finished with 30.0µin (0.76µm) gold for reliable conductivity. Additional features include a board guide and a ground bus (plane) for improved signal integrity.

5767007-8 Quick Information

Product Type: Board to Board Connector
Canonical Name: TE Connectivity 5767007-8 38 Position Plug, Outer Shroud Contacts Connector
Subcategory: Mezzanine Connector

5767007-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5767007-8 Features

  • 38 position plug with outer shroud contacts.
  • 0.64mm pitch in a 2-row configuration.
  • Surface mount termination for automated assembly.
  • Gold contact finish 30.0µin for reliable connections.
  • Includes board guide and ground bus plane.

5767007-8 Applications

  • Used in mezzanine board-to-board interconnections.
  • Suitable for high-density electronic assemblies.
  • Ideal for applications requiring low profile stacking.
  • Ground bus plane aids in EMI management.

5767007-8 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the TE Connectivity 5767007-8 connector have?

The connector has 38 positions.

What is the pitch of the 5767007-8 connector?

The pitch is 0.64mm (0.025").

What is the mounting type for this connector?

The mounting type is Surface Mount.

What is the contact finish on the 5767007-8?

The contact finish is Gold with a thickness of 30.0µin (0.76µm).

What mated stacking heights does the 5767007-8 support?

It supports mated stacking heights of 6.6mm and 15.62mm.
