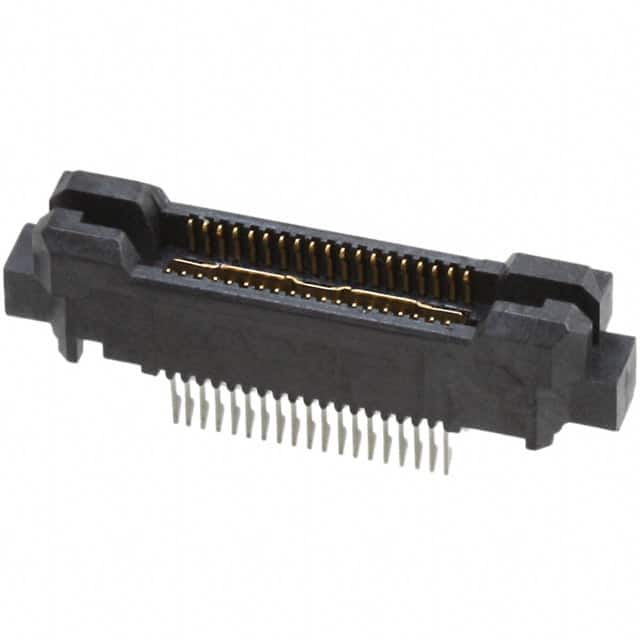

TE Connectivity 5767006-1 is a 38-position plug connector with outer shroud contacts, designed for board edge straddle mount applications. The connector features a 0.64mm (0.025") pitch and dual-row configuration, making it suitable for high-density interconnects in mezzanine or edge-type board-to-board connections.
The contacts are gold-plated with a thickness of 30.0µin (0.76µm), ensuring reliable conductivity and corrosion resistance. The connector has a height above board of 0.251" (6.38mm). It includes board guide features for alignment during assembly and a ground bus plane for improved signal integrity.
This connector is part of the Arrays, Edge Type, Mezzanine category and is commonly used in applications requiring robust, high-speed connections between parallel boards. The straddle mount design allows for edge mounting on the PCB, saving space and simplifying routing.
| Qty | Low | High |
|---|---|---|
| 1+ | $38.60 | $38.60 |
| 10+ | $31.14 | $31.14 |
| 25+ | $29.66 | $29.66 |
| 50+ | $28.82 | $28.82 |
| 100+ | $28.81 | $28.81 |
| 252+ | $28.75 | $28.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Plug, Outer Shroud Contacts.
38 positions.
0.64mm (0.025").
Board Edge, Straddle Mount.
Gold, 30.0µin (0.76µm).
0.251" (6.38mm).
Board Guide and Ground Bus (Plane).
