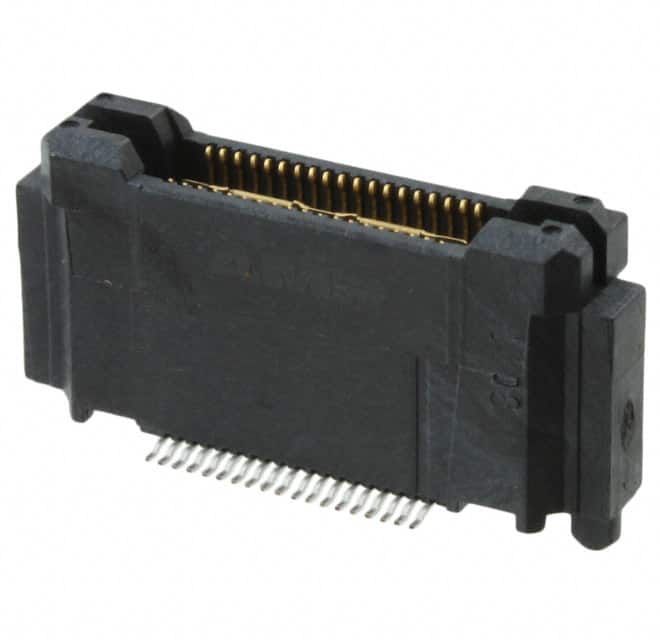

5767005-8 The TE Connectivity 5767005-8 is a 38-position surface mount plug connector with 0.64mm pitch and gold contacts. It features a board guide and ground bus plane for mezzanine stacking applications.
Mfr Part #:

5767005-8

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity 5767005-8 is a 38-position surface mount plug connector with 0.64mm pitch and gold contacts. It features a board guide and ground bus plane for mezzanine stacking applications.
✓ Total Stock: 15 pcs

5767005-8 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request N/A On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 09+47 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5767005-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

5767005-8 Description

Short technical summary and product information.

The TE Connectivity 5767005-8 is a 38-position board-to-board connector with outer shroud contacts, designed for surface mount applications. It features a 0.64mm (0.025") pitch and a dual-row configuration. The connector has gold contact finish with 0.76µm thickness for reliable signal transmission. With a height above board of 12.29mm, it supports mated stacking heights of 12.57mm and 21.6mm, making it suitable for mezzanine stacking designs. The part includes a board guide and ground bus plane for alignment and grounding purposes.

5767005-8 Quick Information

Product Type: Board-to-Board Connector Plug
Series: 5767005-8
Canonical Name: TE Connectivity 5767005-8, 38 Position Plug, Outer Shroud Contacts, Surface Mount Connector
Subcategory: Arrays, Edge Type, Mezzanine (Board to Board)

5767005-8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5767005-8 Features

  • 38 positions in two-row outer shroud design.
  • 0.64mm pitch for dense board connections.
  • Gold contact finish with 0.76µm thickness.
  • Supports 12.57mm and 21.6mm stacking heights.
  • Includes board guide and ground bus plane.

5767005-8 Applications

  • Ideal for mezzanine board-to-board stacking.
  • Used in compact parallel PCB interconnects.
  • Suited for high-density signal routing applications.
  • Common in server and telecom equipment designs.

5767005-8 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the TE Connectivity 5767005-8 connector have?

38 positions in a 2-row configuration.

What is the pitch of the 5767005-8 connector?

0.64mm (0.025") pitch.

What is the mounting type for the 5767005-8?

Surface mount (SMD).

What is the contact finish on the 5767005-8?

Gold contact finish with 0.76µm thickness.

What stacking heights does the 5767005-8 support?

Mated stacking heights of 12.57mm and 21.6mm.

Does the 5767005-8 have a board guide and ground bus plane?

Yes, it features a board guide and ground bus plane.
