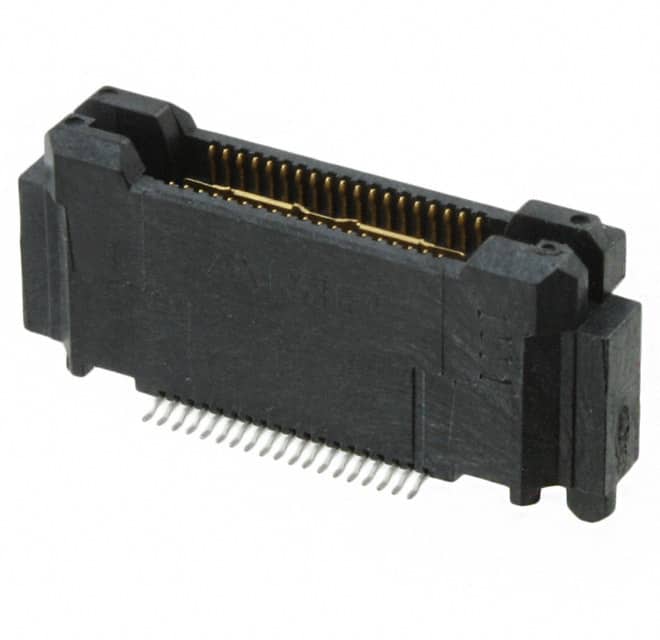

The TE Connectivity 5767003-9 is a 38-position plug connector designed for parallel board-to-board mezzanine stacking. It features a 0.64mm (0.025") pitch and surface mount termination, making it suitable for automated assembly in compact electronic systems. The connector uses gold contact finish with 30.0µin (0.76µm) thickness for reliable signal integrity.
This connector includes a board guide and a ground bus (plane) to assist alignment and provide a common ground reference. The height above board is 10.64mm (0.419"), and it supports mated stacking heights of 11mm and 20mm, offering flexibility in stacking configurations. The two-row arrangement provides 38 positions for signal or power connections.
RoHS3 compliance is indicated but unverified, and the MSL is rated as Level 1 (unlimited floor life). The part is classified under REACH as unaffected. However, these compliance statements should be verified against official documentation due to low confidence in the source data.
38 positions in a 2-row configuration.
0.64mm (0.025 inches).
Surface mount (SMD).
Gold with a thickness of 30.0µin (0.76µm).
11mm and 20mm.
Board guide and ground bus (plane).
10.64mm (0.419 inches).
