CRCW0603150RFKEAC
Atmel
The CRCW0603150RFKEAC is a surface mount chip resistor from Atmel. It features RoHS3 compliance and an MSL 1 rating.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| SVHC Present |

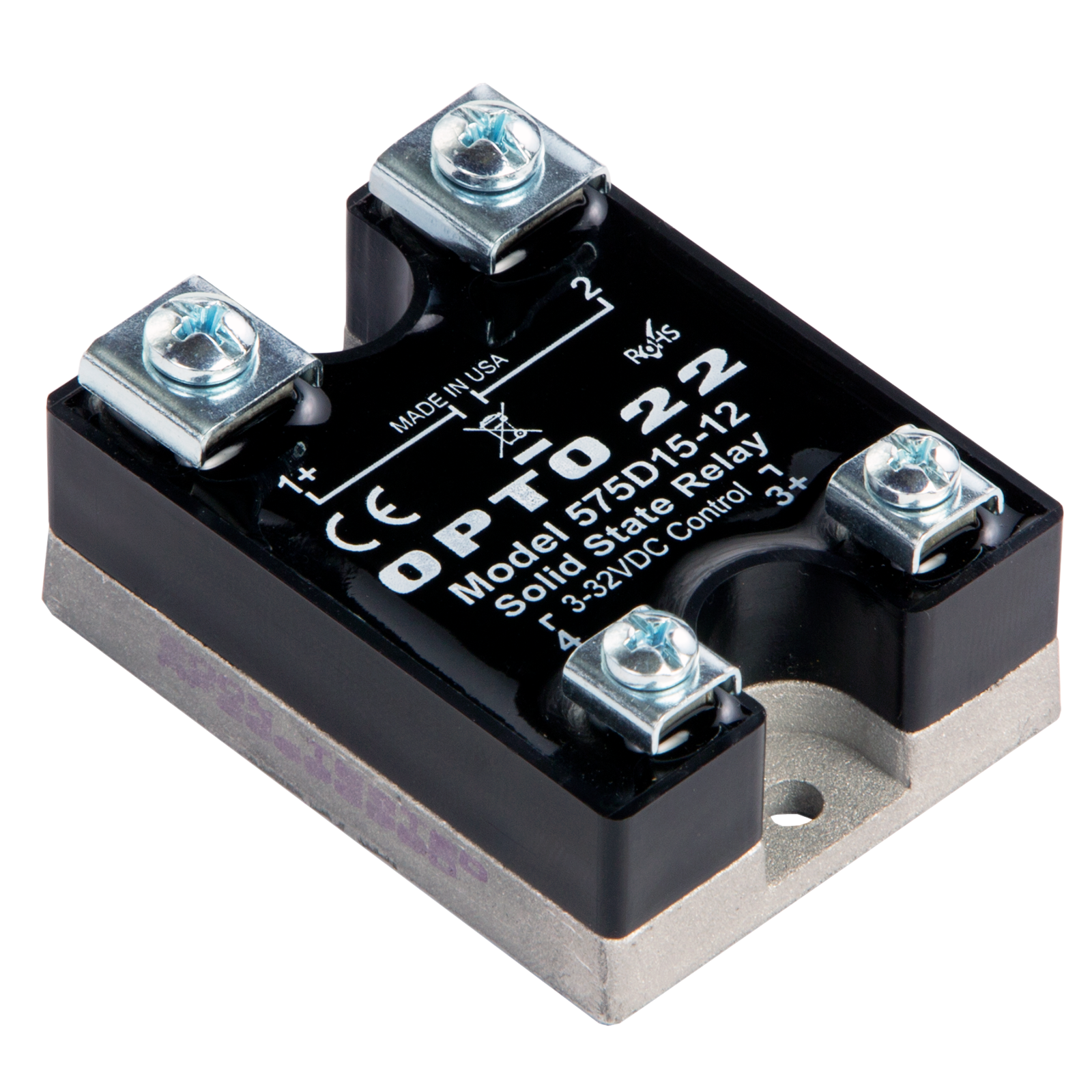

The Opto 22 575D15-12 is a robust solid-state relay (SSR) from the Power Series, engineered for reliable switching of high AC voltages. This model is specifically designed to handle 575 VAC at a nominal current rating of 15 Amps, with a peak surge current capability of 150 Amps for one cycle.
Key electrical specifications include a nominal input resistance of 1000 Ohms, a signal pick-up voltage of 3 VDC, and a signal drop-out voltage of 1 VDC. The relay provides a maximum output voltage drop of 3.2 volts and a maximum off-state leakage of 15 mA. It features 4,000 volts of optical isolation between the input and output circuits, ensuring system protection. The operating voltage range is 100-600 VAC, and it is transient proof.
Opto 22 emphasizes the reliability of its SSRs, utilizing rugged epoxy encapsulation and a unique heat-spreader technology. The 575D15-12 is UL and CSA recognized, and CE and UKCA certified. It is important to note that this series is not recommended for direct PCB mounting due to potential variations in terminal height; MP or P series SSRs are suggested for PCB applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 575D15-12 can switch a nominal AC line voltage of 575 VAC.
The nominal current rating for the 575D15-12 is 15 Amps.
The 575D15-12 provides 4,000 volts RMS of isolation.
The signal pick-up voltage is 3 VDC.
The maximum off-state leakage current is 15 mA.
Yes, the 575D15-12 is CE certified.
