5749854-1 Two-piece D-Sub backshell for 100-position connectors, 180° cable exit, shielded, with nickel over copper plating and 2-56 mating screws.
Mfr Part #:

5749854-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Two-piece D-Sub backshell for 100-position connectors, 180° cable exit, shielded, with nickel over copper plating and 2-56 mating screws.
✓ Total Stock: 3 pcs

5749854-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5749854-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Connector System
Features
Halogen Free
Hardware
Material
Number of Positions
Operating Temperature Range
Plating
Shielding
View Similar Products (0)

5749854-1 Description

Short technical summary and product information.

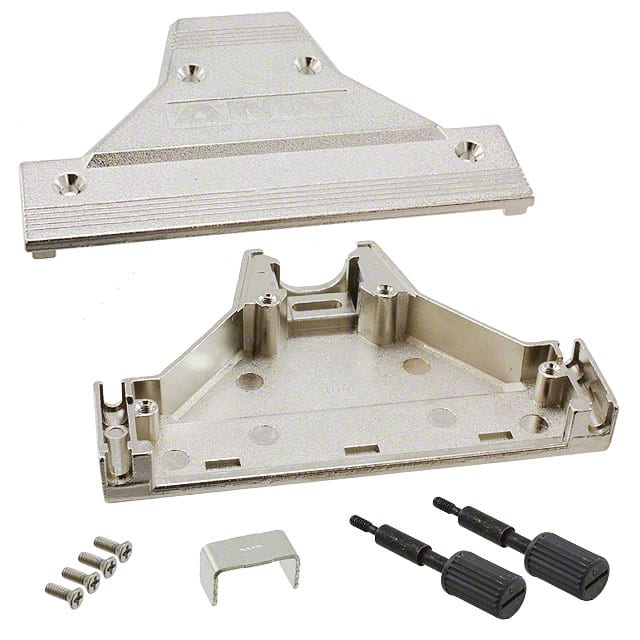

The TE Connectivity 5749854-1 is a two-piece D-Sub backshell designed for 100-position connectors. It features a 180° cable exit for round cables and provides full shielding with nickel over copper plating on a zinc metal body. The backshell includes assembly hardware and strain relief, and uses 2-56 mating screws with lengths of 6.35 mm and 36.93 mm. It is rated for operating temperatures from -55 to 105°C and is cable mount (free-hanging). This backshell is part of the AMPLIMITE .050 series and is RoHS and REACH compliant with low halogen content.

5749854-1 Quick Information

Product Type: D-Sub Backshell
Series: 5749854
Canonical Name: D-Sub Backshell, Two Piece, 100 Position, 180° Cable Exit, Shielded
Subcategory: D-Sub Accessories

5749854-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

5749854-1 Features

  • Two-piece shielded D-Sub backshell.
  • 100-position connector compatibility.
  • 180° cable exit for round cables.
  • Nickel over copper plated zinc body.
  • Includes 2-56 mating screws and strain relief.

5749854-1 Applications

  • Used in data communication equipment.
  • Suitable for industrial control systems.
  • Ideal for shielded cable assemblies.
  • Applied in aerospace and defense electronics.

5749854-1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the 5749854-1 backshell?

-55 to 105°C

How many positions does this backshell support?

100 positions

Is the 5749854-1 backshell shielded?

Yes, it is shielded with nickel over copper plating.

What type of cable exit does this backshell have?

180° cable exit for round cables.

What is the material of the 5749854-1 backshell?

Zinc metal with nickel over copper plating.

Does the 5749854-1 include mounting hardware?

Yes, it includes assembly hardware, strain relief, and 2-56 mating screws.
