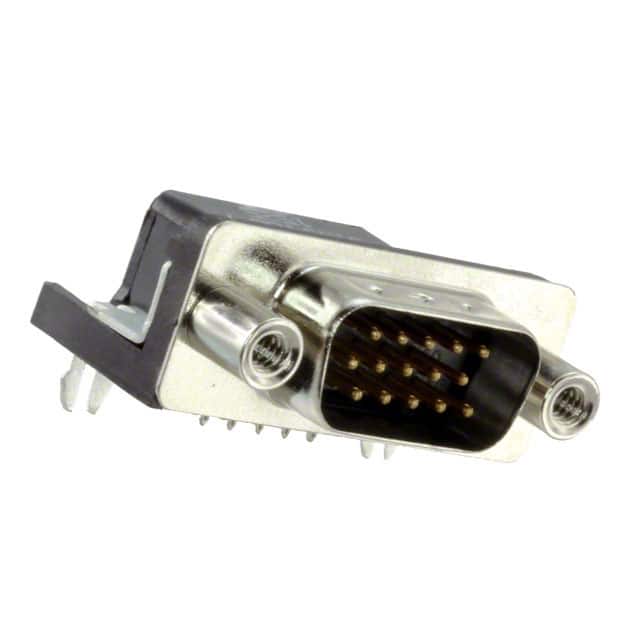

The TE Connectivity 5749768-1 is a D-Sub high density plug connector featuring 15 positions arranged in 3 rows. It uses male pin contacts with a gold finish of 30.0µin (0.76µm) for reliable signal transmission. The connector is designed for through hole, right angle mounting with solder termination, making it suitable for PCB applications where space is constrained.
This connector has a current rating of 2A per contact and uses a shell size 1 (DE, E) high density layout. The shell is made of steel with nickel plating, and includes a flange feature with mating side female screwlock (4-40) for secure mating. Additional features include board lock and grounding indents for improved mechanical stability and EMI performance.
The insulator material has a UL94 V-0 flammability rating, and the connector is wave solder capable to 265°C. It is compliant with EU RoHS, REACH, ELV, China RoHS, and is low halogen.
Plug, Male Pins; D-Sub, High Density.
15 positions arranged in 3 rows.
Through Hole, Right Angle mounting with Solder termination.
2A per contact.
Gold, 30.0µin (0.76µm) thickness.
Steel, Nickel Plated.
RoHS, REACH, ELV, China RoHS compliant; Low Halogen; UL94 V-0.
