| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 1102 | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

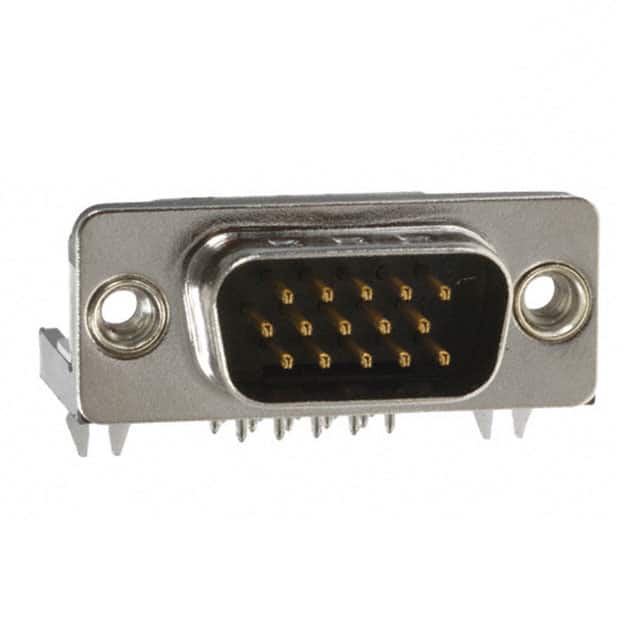

The TE Connectivity 5749767-1 is a high-density D-Sub plug from the AMPLIMITE series, featuring 15 positions arranged in 3 rows. It offers right-angle through-hole mounting with solder termination for secure PCB attachment. The contacts are gold-plated with a thickness of 30µin (0.76µm) for reliable signal integrity. The shell is made of steel with nickel plating and includes grounding indents for enhanced EMI performance. Rated at 2A per contact, the insulator material meets UL94 V-0 flammability standards. The backset spacing is 0.350" (8.89mm). This connector is designed for applications requiring high-density interconnects in industrial, communication, and data systems. Note: Per PCN E-17-013605, this part is being obsoleted with a last order date of 15-DEC-2017.
15 positions arranged in 3 rows.
2A per contact.
Through hole, right angle.
Gold, 30µin (0.76µm) thickness.
Steel, nickel plated.
UL94 V-0.
0.350" (8.89mm).
